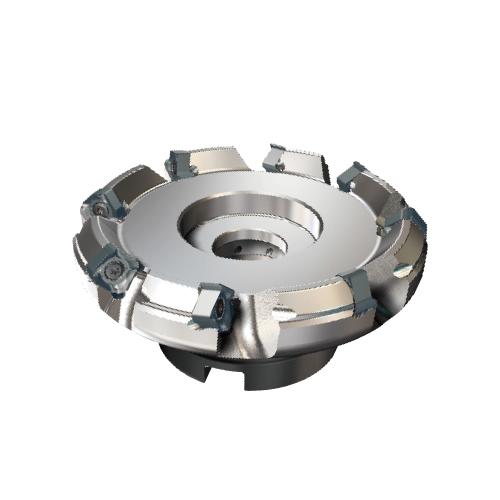

WSX445UR2506CA FACE MILL
MIT828414
MFG #: 828414
$873.49
/ EA
- Series: WSX445_INCH
- Maximum Depth of Cut: 0.197"
- Hand: Right
- Access Hole Diameter: 0.539"
- ANSI Designation: WSX445UR2506CA
- Attributes (Y): Y
- Axial Rake Angle: -6°
- Connection Bore Counterbore Depth: 0.671"
- Connection Bore Counterbore Diameter: 0.827"
- Connection Bore Depth: 0.945"
- Connection Diameter: 1"
- Cutting Edge Angle: 45°
- Functional Length: 2"
- Image (Y): Y
- Keyway Width: 0.375"
- Machine Side Contact Surface Diameter: 2.19"
- Maximum Diameter: 3.006"
- Measurement Standard: Imperial
- Radial Rake Angle: -10°
