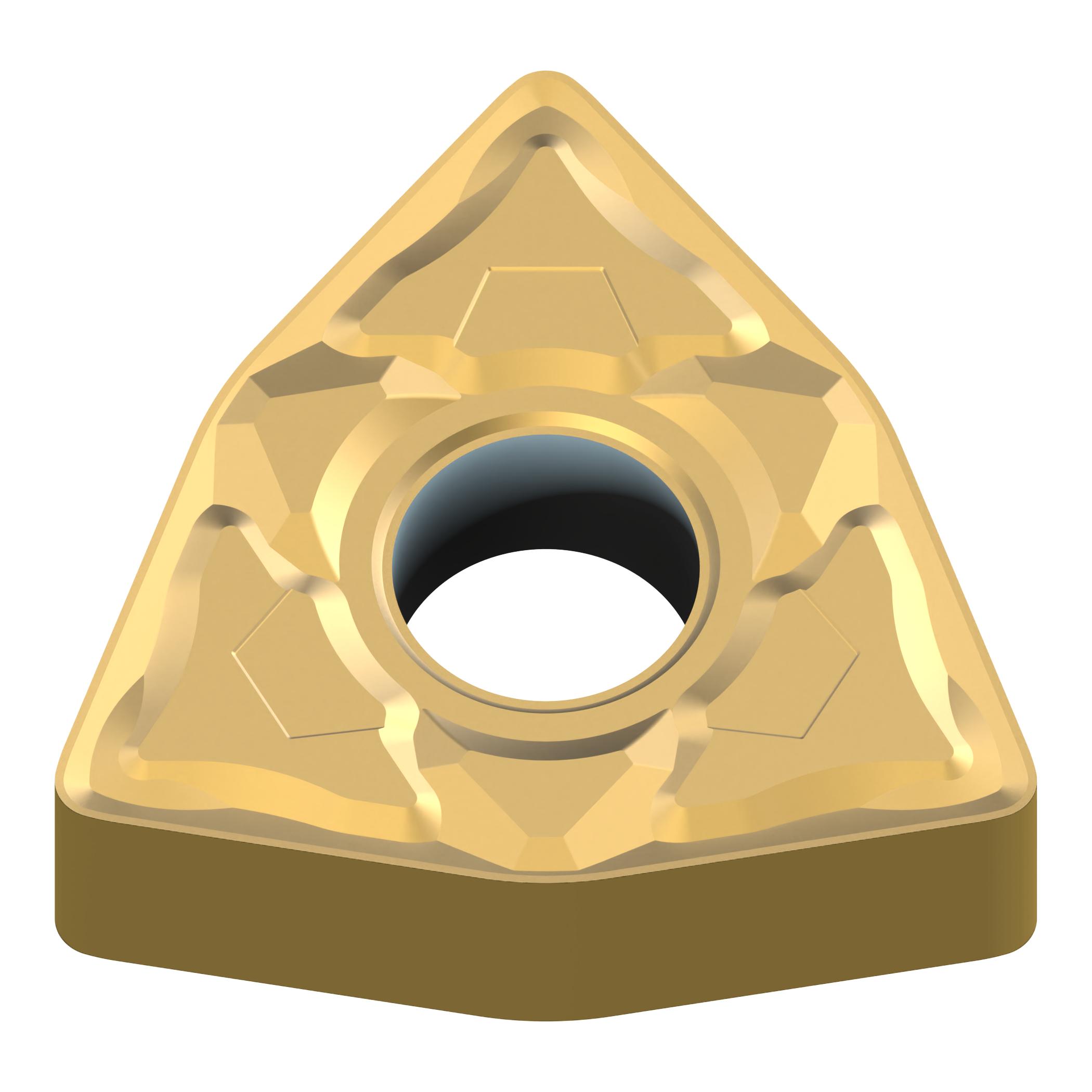

WNMG433SW MP3025 WNMG080412-SW MP3025
WNMG433SW MP3025 WNMG080412-SW MP3025
MIT615814
615814
12.88
/ EA
http://schema.org/OutOfStock
/Product/MIT615814
- Chipbreaker: SW
- Corner Radius: 1.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.203 in
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: WNMG
- ISO Code: WNMG080412-SW MP3025
- Material: Cermet
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Trigon
- Thickness: 4.76 mm
- Type: Wiper
- ANSI Code: WNMG433SW MP3025
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.69 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP3025
- Application
For Light Cutting
