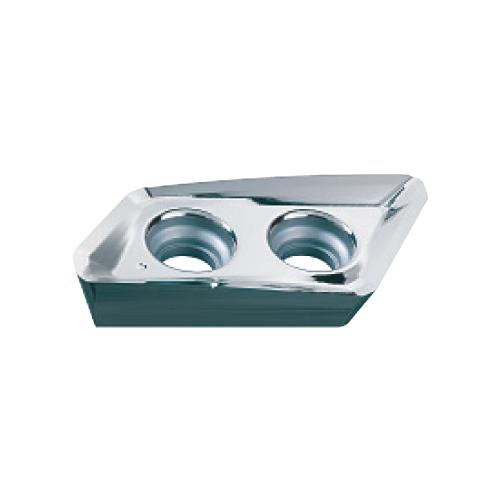

XDGX175008PDFR-GL TF15 AXD4000 MILLING INSERT

XDGX175008PDFR-GL TF15 AXD4000 MILLING INSERT

MIT567023 567023
328.72 / PK (10)
http://schema.org/OutOfStock
  • Material: Carbide
  • Corner Radius: 0.8 mm
  • Manufacturer Grade: TF15
  • Material Grade: N, S
  • ANSI Designation: XDGX175008PDFR-GL
  • Application: Low Resistance
  • Attributes (Y): Y
  • Clearance Angle: 20°
  • Cutting Edge Effective Length: 17 mm
  • Cutting Edge Length: 23 mm
  • Fixing Hole Diameter: 3.5 mm
  • Image (Y): Y
  • Insert Length: 17.5 mm
  • Measurement Standard: Metric
  • Thickness: 5 mm
  • Wiper Edge Length: 1.3 mm
