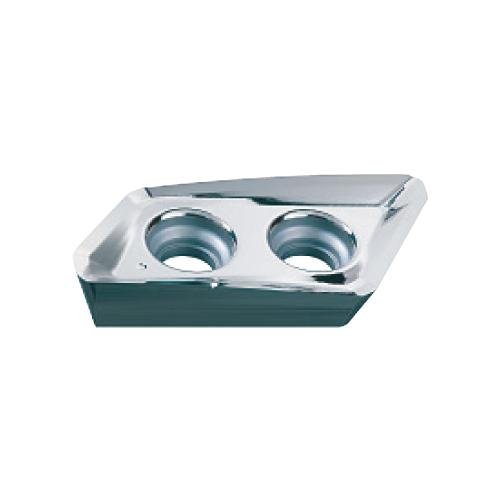

XDGX175004PDFR-GL TF15 AXD4000 MILLING INSERT
XDGX175004PDFR-GL TF15 AXD4000 MILLING INSERT
MIT565431
565431
328.72
/ PK (10)
http://schema.org/OutOfStock
/Product/MIT565431
- Material: Carbide
- Corner Radius: 0.4 mm
- Manufacturer Grade: TF15
- Material Grade: N, S
- ANSI Designation: XDGX175004PDFR-GL
- Application: Low Resistance
- Attributes (Y): Y
- Clearance Angle: 20°
- Cutting Edge Effective Length: 16.9 mm
- Cutting Edge Length: 23 mm
- Fixing Hole Diameter: 3.5 mm
- Image (Y): Y
- Insert Length: 17.5 mm
- Measurement Standard: Metric
- Thickness: 5 mm
- Wiper Edge Length: 1.7 mm
