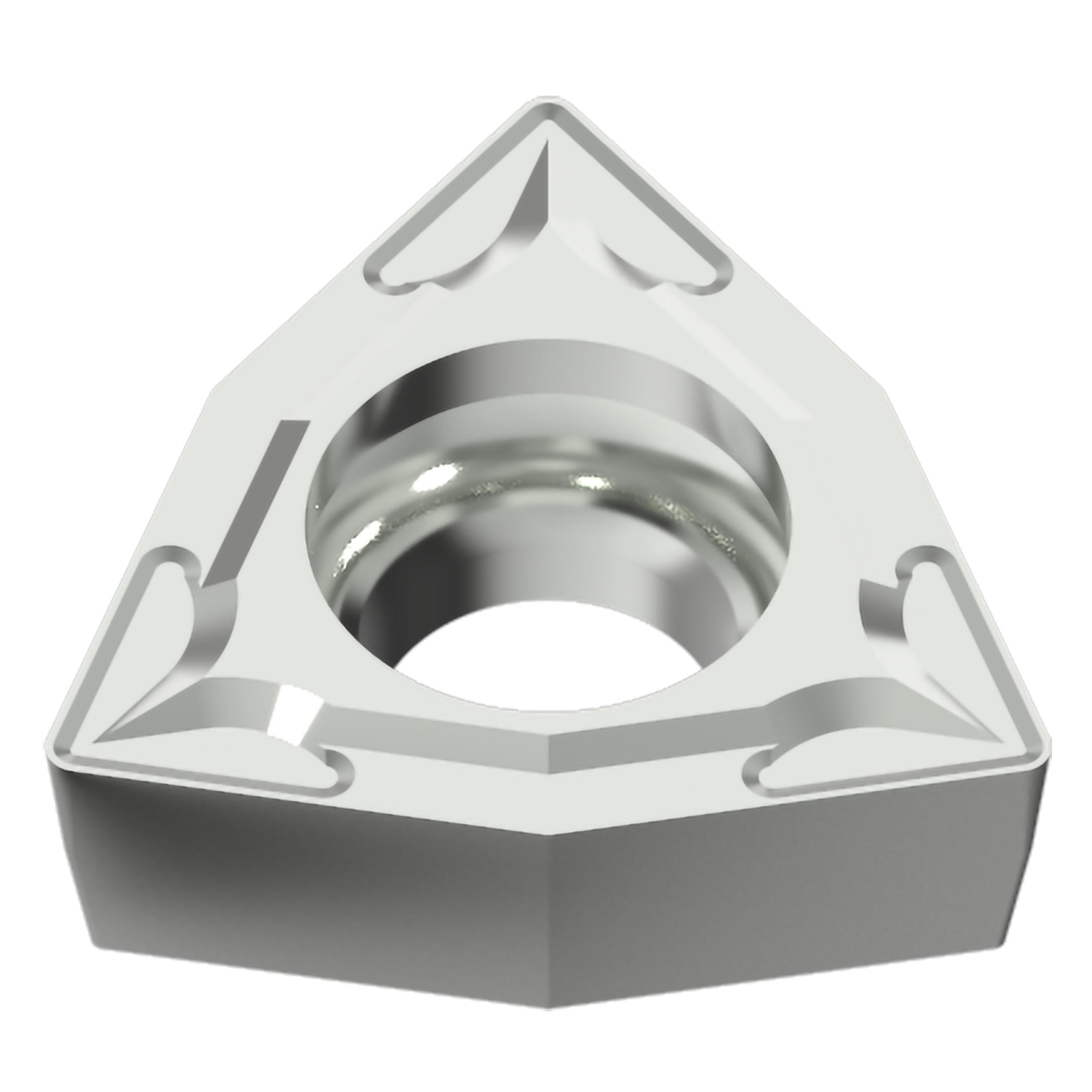

WCMT32.51 NX3035 WCMT06T304 NX3035
WCMT32.51 NX3035 WCMT06T304 NX3035
MIT439996
439996
13.88
/ EA
http://schema.org/OutOfStock
/Product/MIT439996
- Chipbreaker: standard
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: WCMT
- ISO Code: WCMT06T304 NX3035
- Material: Cermet
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Trigon
- Thickness: 3.97 mm
- Type: Without Wiper
- ANSI Code: WCMT32.51 NX3035
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.52 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: NX3035
- Application
For Medium Cutting
