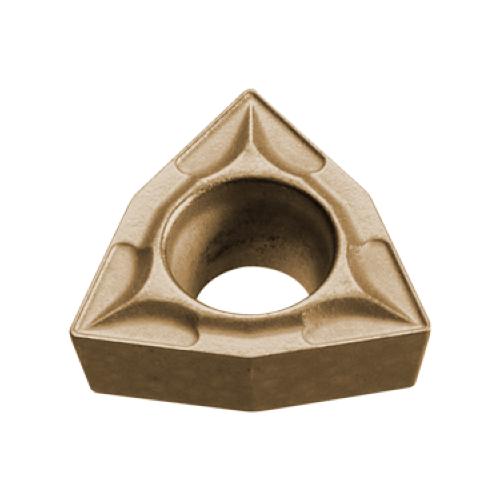

WCMT1.51.51MP MC6115 TURNING INSERT
WCMT1.51.51MP MC6115 TURNING INSERT
MIT23033290
23033290
12.26
/ EA
http://schema.org/OutOfStock
/Product/MIT23033290
- Chipbreaker: MP
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.091 in
- Included Angle: 80 deg
- Inscribed Circle: 4.76 mm
- Insert Style: WCMT
- ISO Code: WCMTL30204-MP MC6115
- Material: CVD Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Trigon
- Thickness: 2.38 mm
- ANSI Code: WCMT1.51.51MP MC6115
- Has Attributes: Yes
- Has Image: Yes
- Length: 3.26 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MC6115
- Application
For Medium Cutting
