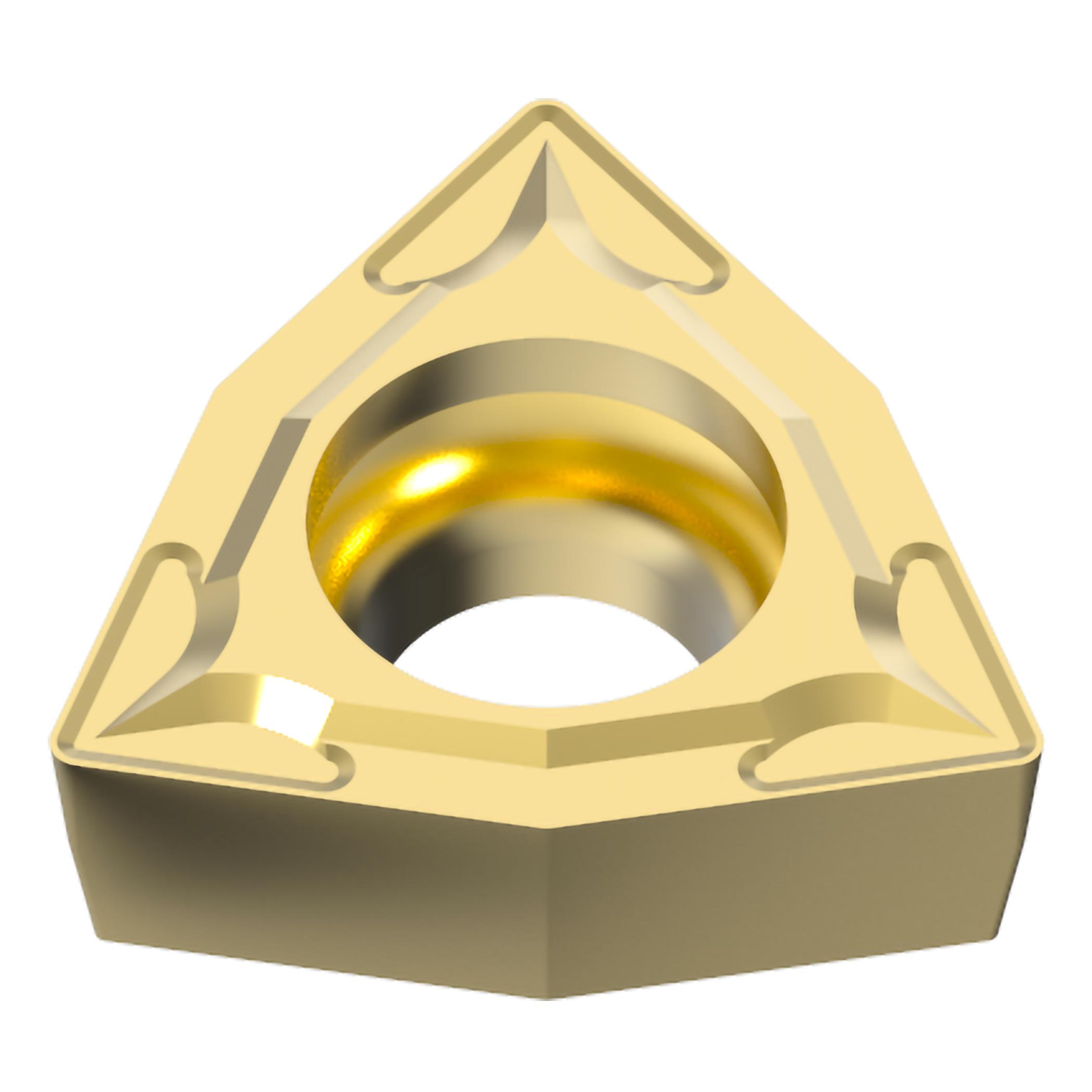

WCMT21.50.5 US735 CVD CARBIDE TURN INSERT
WCMT21.50.5 US735 CVD CARBIDE TURN INSERT
MIT109050
109050
126.36
/ PK (10)
http://schema.org/OutOfStock
/Product/MIT109050
- Chipbreaker: standard
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.11 in
- Included Angle: 80 deg
- Inscribed Circle: 6.35 mm
- Insert Style: WCMT
- ISO Code: WCMT040202 US735
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Trigon
- Thickness: 2.38 mm
- Type: Solid
- ANSI Code: WCMT21.50.5
- Has Attributes: Yes
- Has Image: Yes
- Length: 4.34 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: US735
- Application
For Medium Cutting
