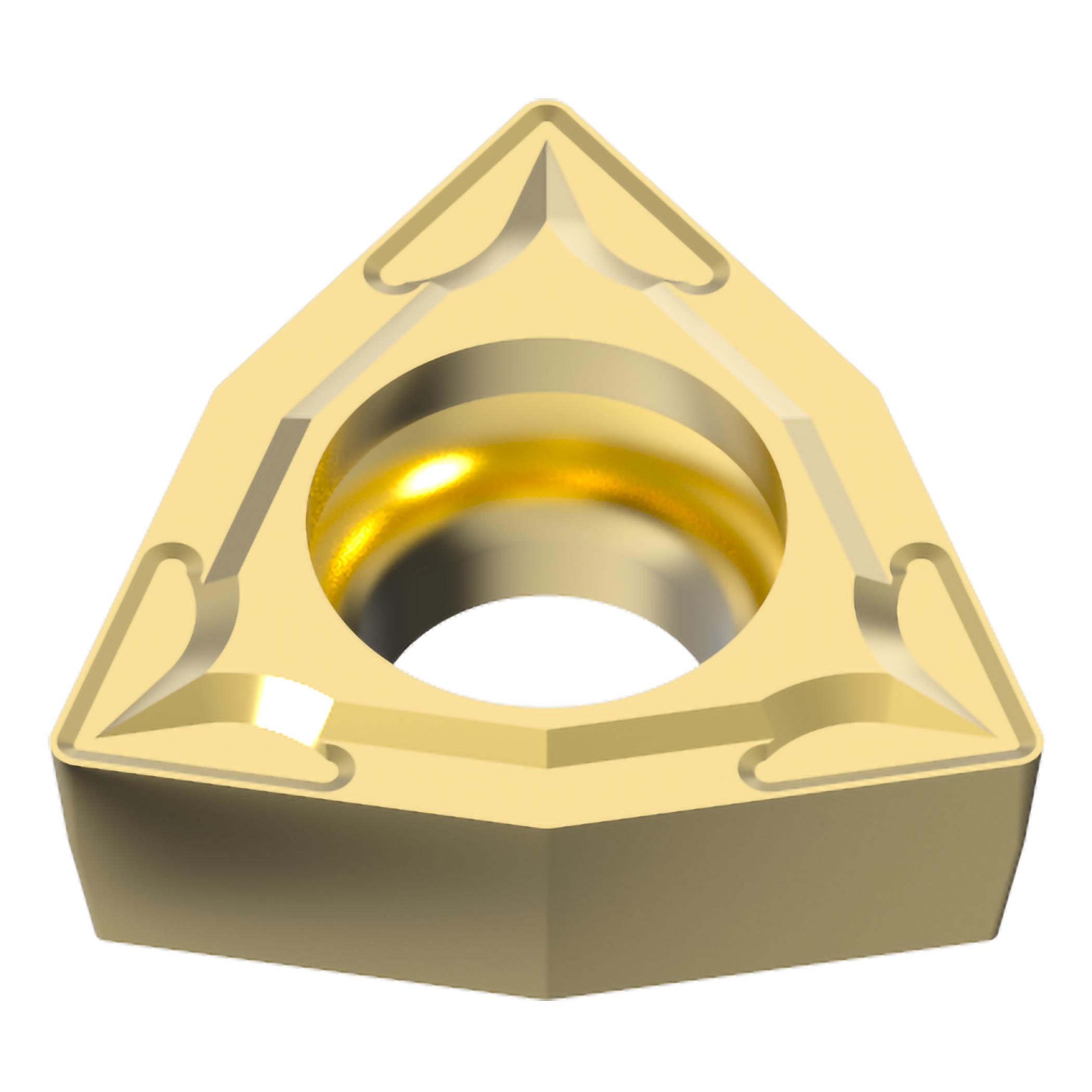

WCMT1.211 US735 CVD CARBIDE TURN INSERT
WCMT1.211 US735 CVD CARBIDE TURN INSERT
MIT109046
109046
122.64
/ PK (10)
http://schema.org/OutOfStock
/Product/MIT109046
- Chipbreaker: standard
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.091 in
- Included Angle: 80 deg
- Inscribed Circle: 3.97 mm
- Insert Style: WCMT
- ISO Code: WCMT020104 US735
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Trigon
- Thickness: 1.59 mm
- Type: Solid
- ANSI Code: WCMT1.211
- Has Attributes: Yes
- Has Image: Yes
- Length: 2.72 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: US735
- Application
For Medium Cutting
