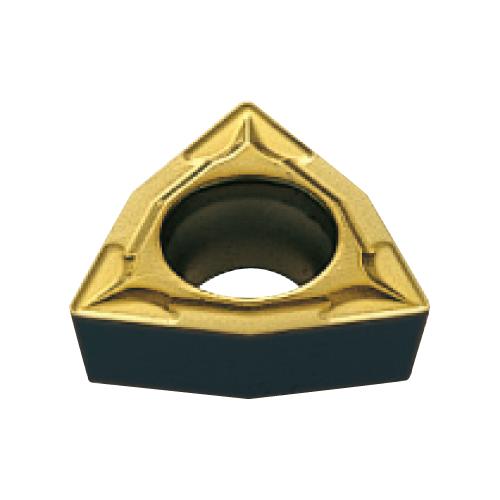

WCMT1.51.50.5 UTi20T WCMTL30202 UTi20T
WCMT1.51.50.5 UTi20T WCMTL30202 UTi20T
MIT109034
109034
9.59
/ EA
http://schema.org/OutOfStock
/Product/MIT109034
- Chipbreaker: standard
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.091 in
- Included Angle: 80 deg
- Inscribed Circle: 4.76 mm
- Insert Style: WCMT
- ISO Code: WCMTL30202 UTi20T
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Trigon
- Thickness: 2.38 mm
- Type: Solid
- ANSI Code: WCMT1.51.50.5
- Has Attributes: Yes
- Has Image: Yes
- Length: 3.26 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: UTi20T
- Application
For Medium Cutting
