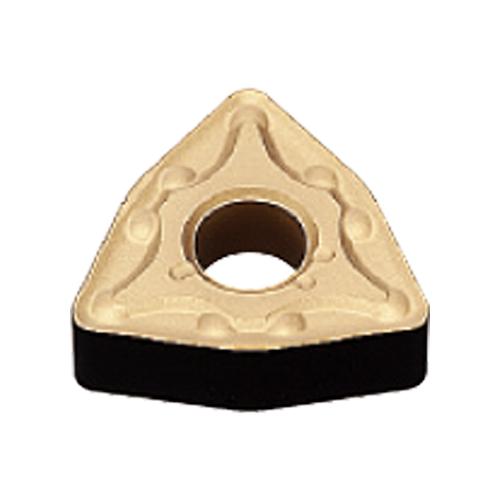

WNMG434MA MP9015 INSERT
WNMG434MA MP9015 INSERT
MIT10587287
10587287
12.88
/ EA
http://schema.org/OutOfStock
/Product/MIT10587287
- Chipbreaker: MA
- Corner Radius: 1.6 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.2 in
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: WNMG
- ISO Code: WNMG080416-MA MP9015
- Material: Carbide
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Trigon
- Thickness: 4.76 mm
- Type: Without Wiper
- ANSI Code: WNMG434MA MP9015
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.69 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP9015
- Application
For Difficult-to-cut Materials
