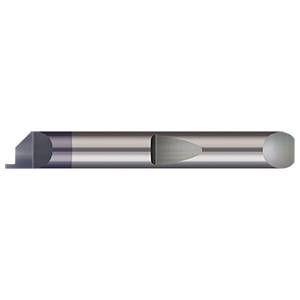

QUICK CHANGE BORING TOOL - FACE GROOVE

QUICK CHANGE BORING TOOL - FACE GROOVE

MICTQFG-470-156X QFG-470-156X
89.45 / EA
http://schema.org/OutOfStock
  • Country of Origin: US
  • Groove Width: 0.156 in
  • Hand Direction: Right Hand
  • Manufacturer Name: Micro 100
  • Material: Solid Carbide
  • Maximum Hole Depth: 0.335 in
  • Minimum Hole Diameter: 0.47 in
  • Overall Length: 2.5 in
  • Shank Diameter: 0.5 in
  • Shank Type: Cylindrical
  • Type: Quick Change
  • Gage Length: 0.15in
  • Has Attributes: Yes
  • Has Image: Yes
  • Surface Treatment: AlTiN
QTY
  • Application
  • Item Features
Designed for generating square grooves in the face of the part
  • Designed for generating square grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
  • Coolant fed enabled shank design
  • Sharp corner profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
