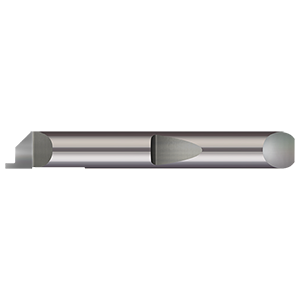

QUICK CHANGE BORING TOOL - FACE GROOVE
QUICK CHANGE BORING TOOL - FACE GROOVE
MICTQFG-230-020
QFG-230-020
36.10
/ EA
http://schema.org/OutOfStock
/Product/MICTQFG-230-020
- Country of Origin: US
- Groove Width: 0.02 in
- Hand Direction: Right Hand
- Manufacturer Name: Micro 100
- Material: Solid Carbide
- Maximum Hole Depth: 0.19 in
- Minimum Hole Diameter: 0.23 in
- Overall Length: 2 in
- Shank Diameter: 0.25 in
- Shank Type: Cylindrical
- Type: Quick Change
- Gage Length: 0.05in
- Has Attributes: Yes
- Has Image: Yes
- Surface Treatment: Uncoated
- Application
- Item Features
Designed for generating square grooves in the face of the part
- Designed for generating square grooves in the face of the part
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
- Coolant fed enabled shank design
- Sharp corner profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
