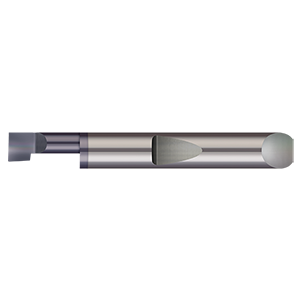

QUICK CHANGE BORING BAR - RH COATED

QUICK CHANGE BORING BAR - RH COATED

MICTQBB-120350X QBB-120350X
37.95 / EA
http://schema.org/OutOfStock
QUICK CHANGE BORING BAR - RH COATED
  • Country of Origin: US
  • Manufacturer Name: Micro 100
  • Material: Solid Carbide
  • Maximum Bore Depth: 0.35 in
  • Minimum Bore Diameter: 0.132 in
  • Overall Length: 1.5 in
  • Shank Diameter: 0.188 in
  • Shank Type: Cylindrical
  • Type: Quick Change
  • Hand Direction: Right Hand
  • Surface Treatment: AlTiN
  • Has Attributes: Yes
  • Has Image: Yes
  • Width Offset: 0.0263 in
QTY
Add to List
  • Application
  • Item Features
Designed for facing and boring applications
  • Designed for facing and boring applications in bores 0.055 in and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
