SER 2XDCL 10.6MM 7X COOLANT THRU CARB DRILL

SER 2XDCL 10.6MM 7X COOLANT THRU CARB DRILL

MAF2XDCL4173A 2XDCL4173A
300.28 / EA
http://schema.org/OutOfStock

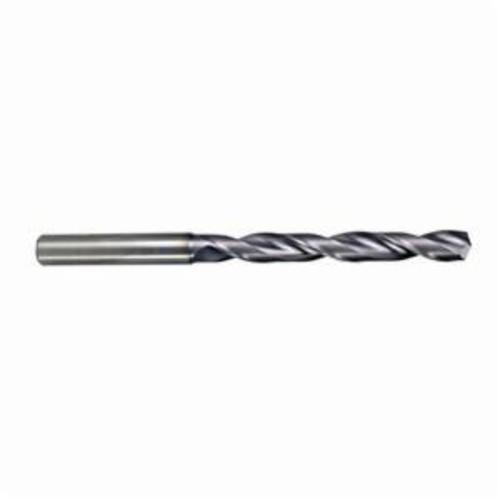

10.6mm Twister XD Coolant LongHP Drill
  • Applicable Materials: Cast Iron, Steels, Stainless Steels and Special Alloys
  • Cutting Depth: 7XD
  • Drill Size - Decimal Inch: 0.4173 in
  • Drill Size Metric: 10.599, 10.6
  • Flute Length: 93 mm
  • Flute Length Decimal Inch: 3.661
  • Flute Length Metric: 93
  • Flute Type: Spiral
  • Material: Solid Carbide
  • Number of Flutes: 2
  • Overall Length: 149 mm
  • Overall Length Decimal Inch: 149
  • Overall Length Metric: 3784.6
  • Point Type: Standard
  • Series: 2XDCL
  • Shank Size: 12 mm
  • Shank Type: Straight
  • Through Coolant (Yes/No): Yes
  • Type: Long Length Xtreme High Performance
  • Country of Origin: US
  • Cutting Direction: Right Hand
  • Cutting Edge Material: Solid Carbide
  • Drill Diameter Measurement System: Metric/Imperial
  • Drill Size - Metric: 10.6 mm
  • Drill Size Decimal Inch: 0.417, 0.4173
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: M.A. Ford
  • Point Angle: 142 deg
QTY
Add to List
  • Application
  • Item Features
  • Standards
For high performance drilling in a broad range of materials
  • Advanced active cut geometric design
  • Redefined critical cut zone characteristics
  • High efficiency flute profile
  • State-of-the-art proprietary coating
  • Stable low thrust point form
  • Extended tool life
  • Elevated metal removal rates (MRR)
  • Lower cost per hole
  • Improved hole/part quality
  • Increased tool reliability
  • Factory trained network of application and technical specialists
  • Factory reconditioning service
  • Ideal platform for modification or an engineered special tool
  • Compatibility to a wide range of standard toolholder systems
ISO 9001:2008
