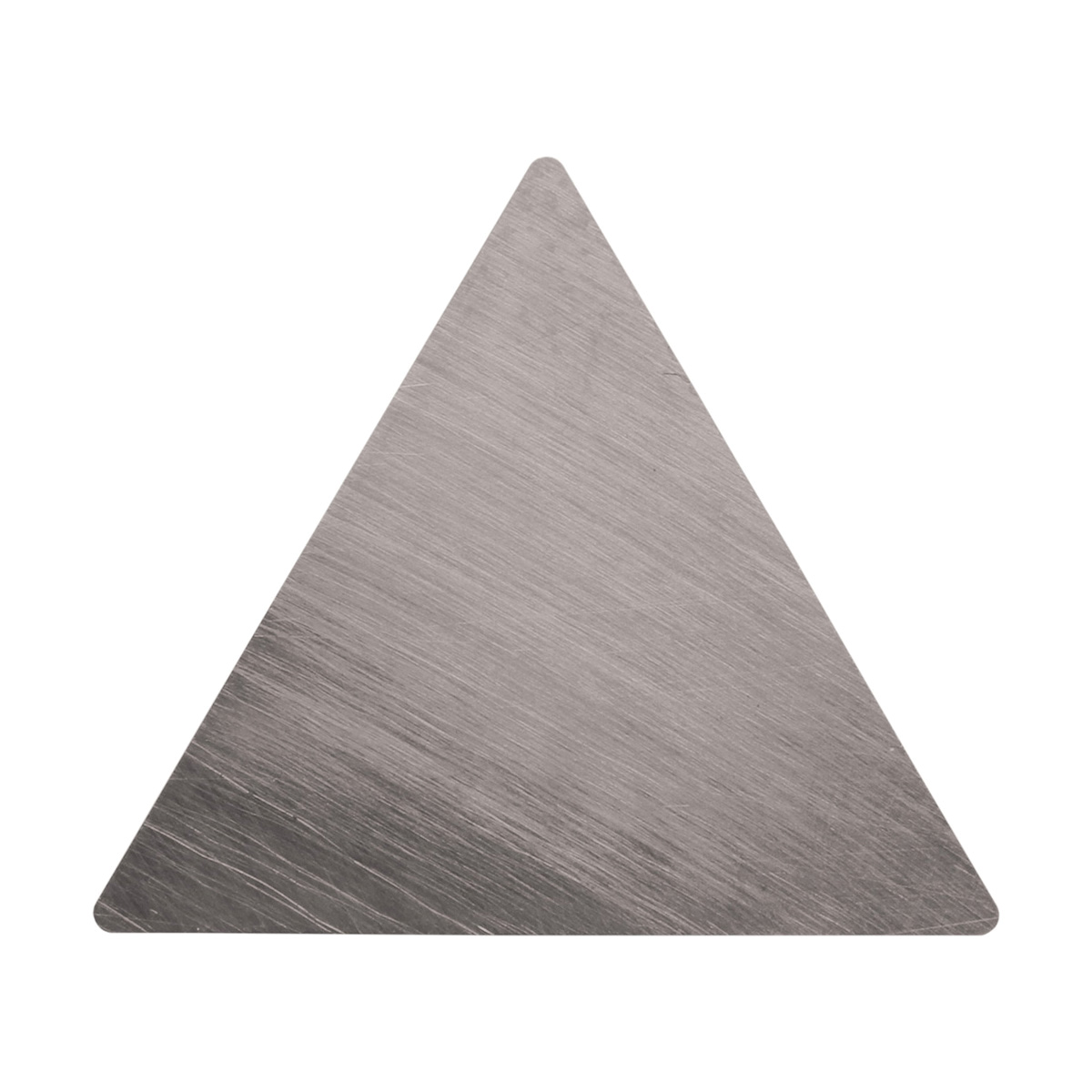

TPG2205KW10 TURNING INSERT
TPG2205KW10 TURNING INSERT
KYOCTWE00687
TWE00687
13.05
/ EA
http://schema.org/OutOfStock
/Product/KYOCTWE00687
- Applicable Materials: Gray Cast Iron, Non-Ferrous Materials and Titanium Alloy
- Corner Radius: 0.0079in
- Hand Direction: Neutral
- Included Angle: 60°
- Inscribed Circle: 1/4in
- Insert Size: #2205
- Insert Style: TPG
- ISO Code: TPGN110302KW10
- Material: Carbide
- Material Grade: N, S, K
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 11
- Shape: Triangular
- Surface Treatment: Uncoated/WC/Co Coated
- Thickness: 0.1252in
- Type: 3-Cutting Edge
- ANSI Code: TPG2205KW10
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KW10
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Boring, Chamfering, External Turning and Facing Applications
- ISO identification symbol K carbide (K10 relevant)
- Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloy
- Without hole
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
