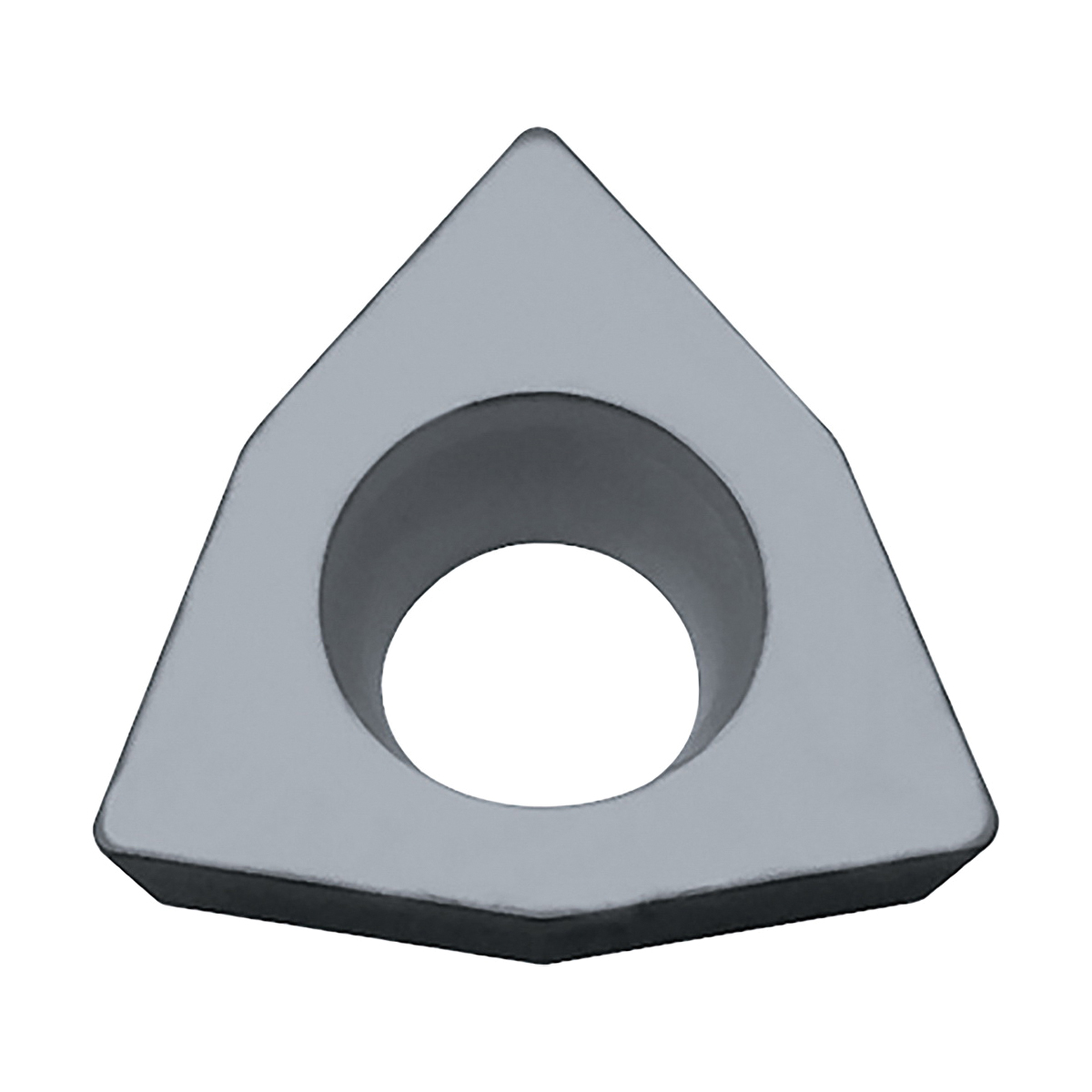

WPGW322KW10 TURNING INSERT
WPGW322KW10 TURNING INSERT
KYOCTWE00629
TWE00629
15.93
/ EA
http://schema.org/OutOfStock
/Product/KYOCTWE00629
- Applicable Materials: Gray Cast Iron, Non-Ferrous Metals and Titanium Alloy
- Corner Radius: 1/32in
- Hand Direction: Neutral
- Hole Diameter: 0.1732in
- Included Angle: 80°
- Inscribed Circle: 3/8in
- Insert Size: #322
- Insert Style: WPGW
- ISO Code: WPGW160308
- Material: Carbide
- Material Grade: N, S, K
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 16
- Shape: Trigon
- Surface Treatment: Uncoated/WC/Co Coated
- Thickness: 1/8in
- Type: 3-Cutting Edge
- Manufacturer Grade: KW10
- ANSI Code: WPGW322KW10
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
Boring Applications
- Without chipbreaker
- Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloys
- ISO identification symbol K carbide (K10 relevant)
ECCN: EAR99
