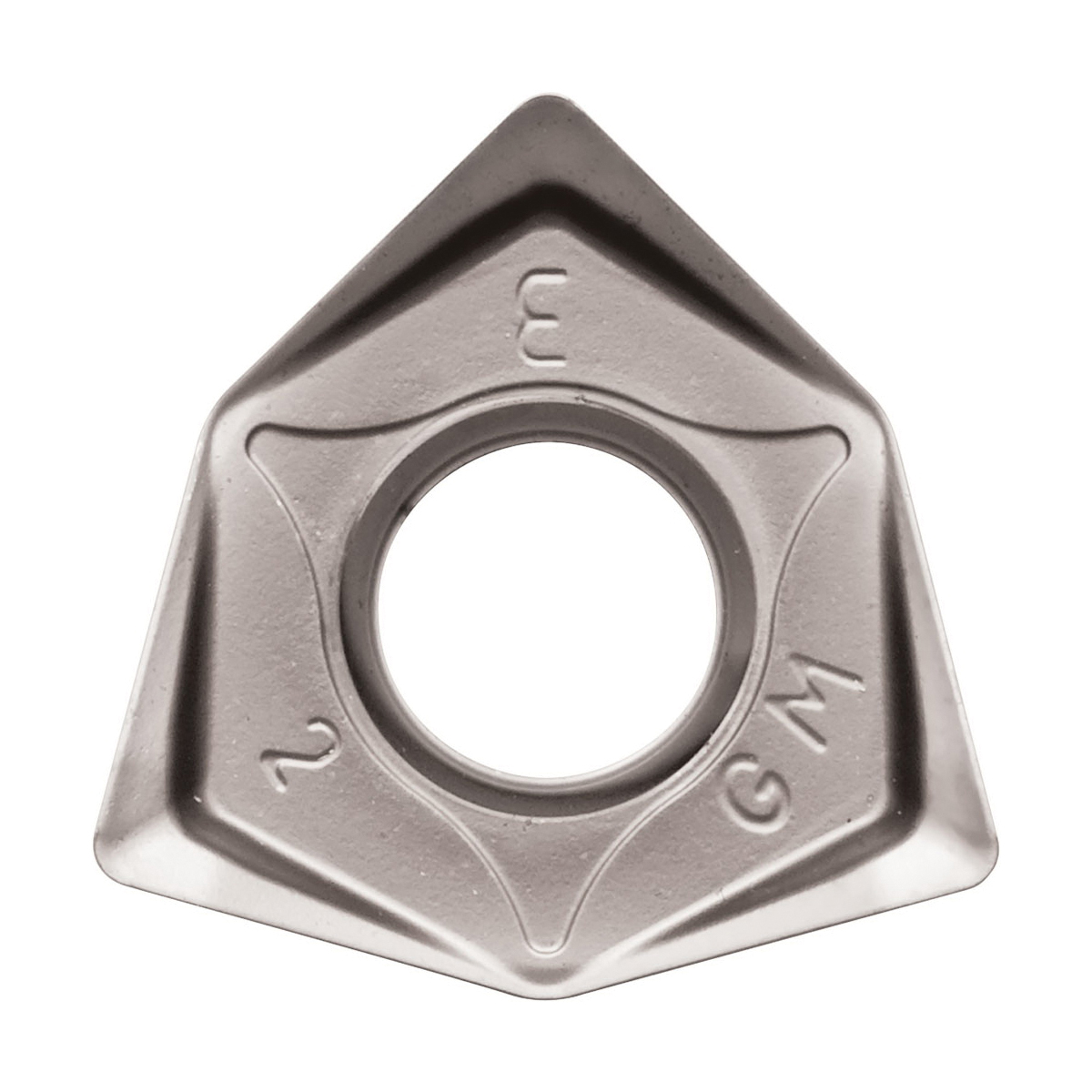

WNMU080608ENGMTN620M MILLING INSERT
WNMU080608ENGMTN620M MILLING INSERT
KYOCTST09310
TST09310
14.43
/ EA
http://schema.org/OutOfStock
/Product/KYOCTST09310
- Chipbreaker: EN-GM
- Corner Radius: 1/32in
- Hand of Insert: Neutral
- Hole Diameter: 0.2441in
- Inscribed Circle: 0.552in
- Insert Size: #080608
- Insert Style: WNMU
- Material: Cermet
- Rake: Negative
- Shape: Trigon
- Surface Treatment: UNCOATED
- Thickness: 0.2618in
- Type: 6-Cutting Edge
- Manufacturer Grade: TN620M
- ISO Code: WNMU080608EN-GM
- ANSI Code: WNMU080608ENGMTN620M
- Material Grade: P
- Applicable Materials: Free-Cutting Steel, Carbon/Alloy Steel and Mold Steel
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Lead Angle: 80°
- Manufacturer Name: KYOCERA Precision Tools
- Series: M-SIX (MFWN)
- Application
- Item Features
- Standards
Facing, Shouldering and Slotting Applications
- Honed edge with 6 cutting edges
- Tough cermet for milling with excellent balance of wear resistance and toughness
ECCN: EAR99
