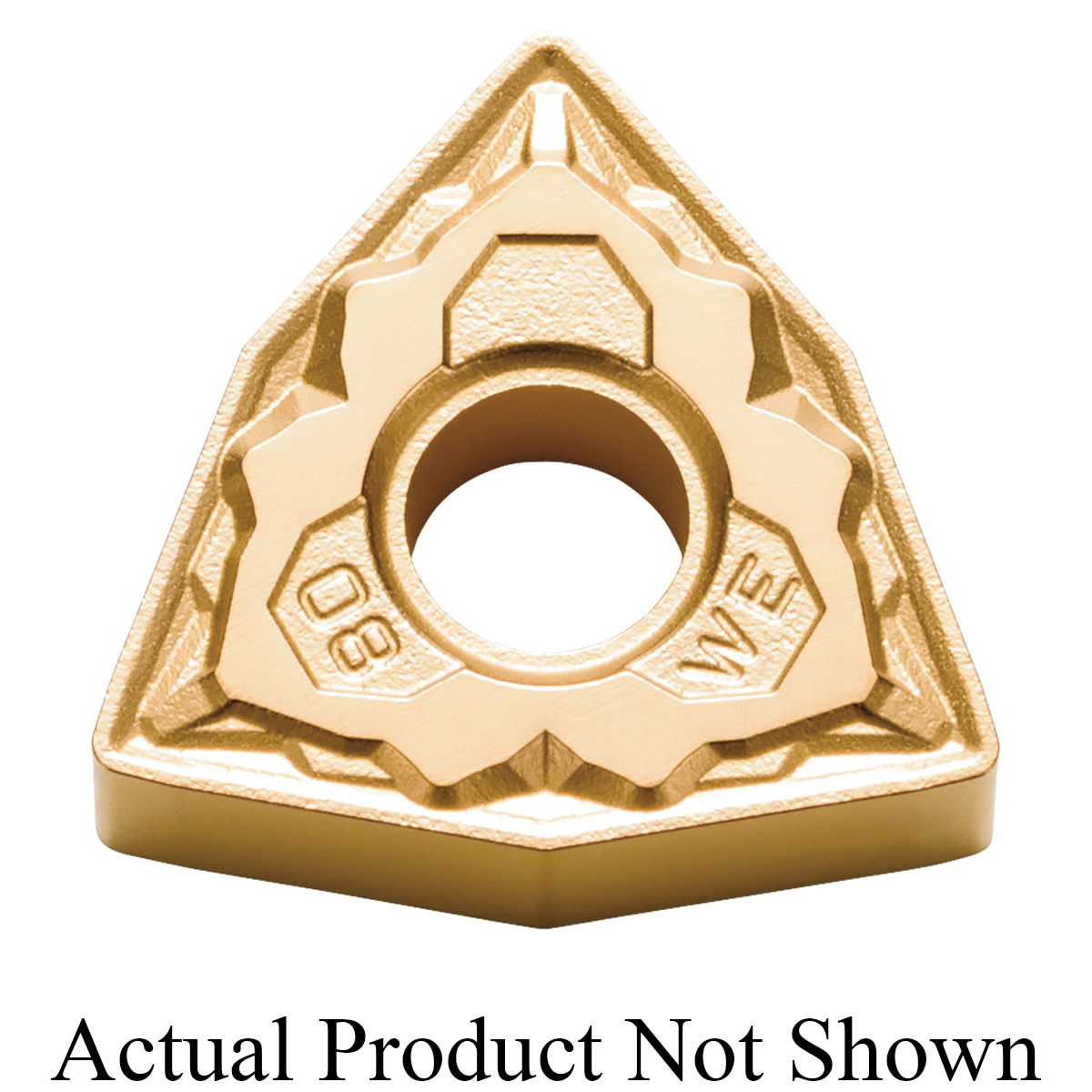

WNMG433WETN610 TURNING INSERT

WNMG433WETN610 TURNING INSERT

KYOCTSS09112 TSS09112
8.69 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: WE
  • Corner Radius: 3/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #433
  • Insert Style: WNMG
  • ISO Code: WNMG080412WE
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: Uncoated/TiCN Coated
  • Thickness: 3/16in
  • Type: 6-Cutting Edge
  • Manufacturer Grade: TN610
  • ANSI Code: WNMG433WETN610
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
QTY
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Wiper edge with 6 cutting edges
  • Three hybrid technology attributes maintain superior surface finish and machining stability
  • Stable machining of steel
ECCN: EAR99
