KYOCERA PRECISION TOOLS

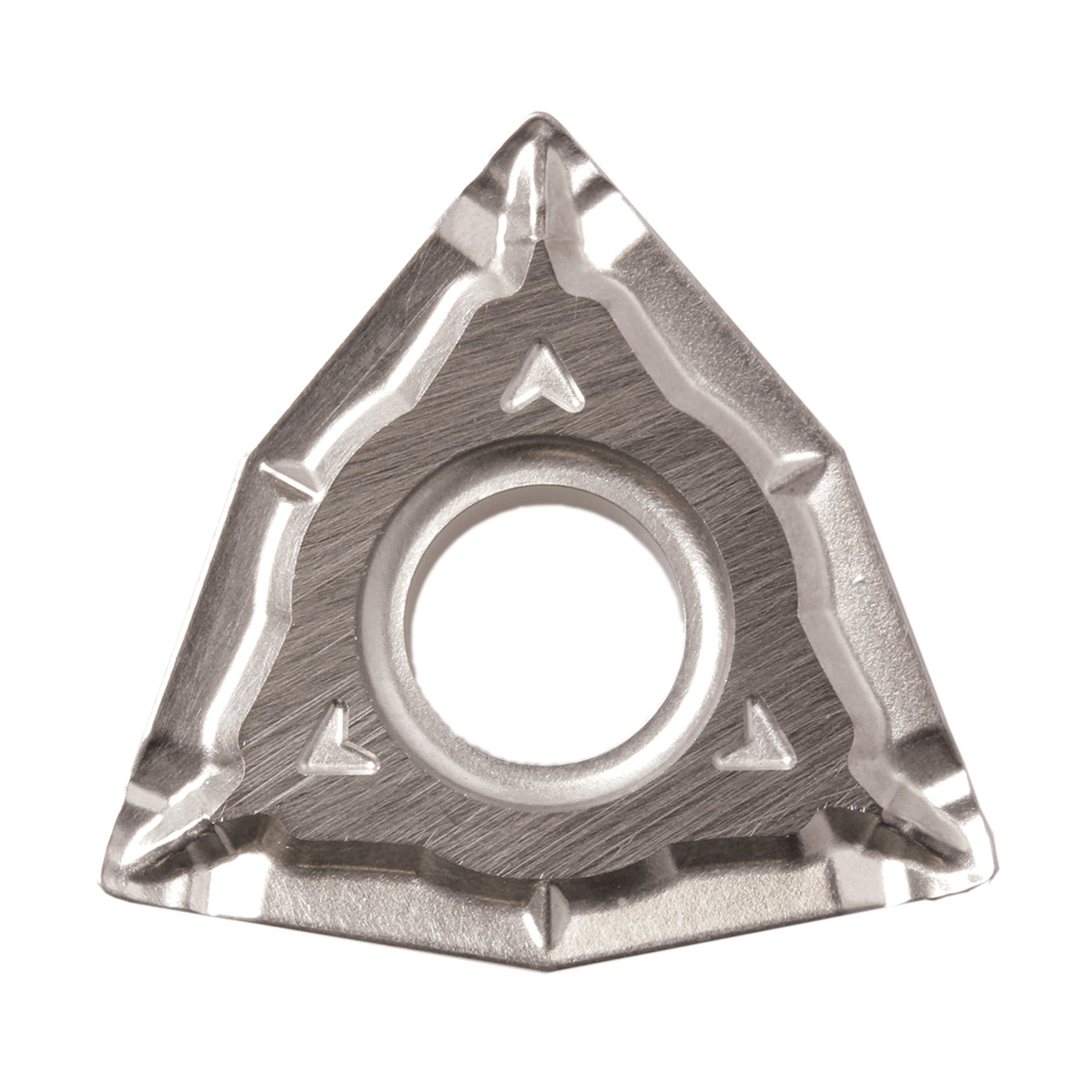

WNMG433WQTN620 TURNING INSERT

WNMG433WQTN620 TURNING INSERT

KYOCTSR08652 TSR08652
8.00 / EA
http://schema.org/OutOfStock
  • Insert Style: WNMG
  • Insert Size: #433
  • Corner Radius: 0.0472in
  • Manufacturer Grade: TN620
  • Chipbreaker: WQ
  • ISO Code: WNMG080412WQ
  • ANSI Code: WNMG433WQTN620
  • Included Angle: 80°
  • Shape: Trigon
  • Material Grade: P
  • Seat Size: 8
  • Surface Treatment: Uncoated/TiCN Coated
  • Inscribed Circle: 1/2in
  • Applicable Materials: Carbon/Alloy Steel
  • Country of Origin: US|JP|CN|KR
  • Hand Direction: Neutral
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 0.2031in
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Cermet
  • Rake: Negative
  • Relief Angle:
  • Series: ISOI
  • Thickness: 0.1874in
  • Type: 6-Cutting Edge
QTY
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Wiper edge with 6-cutting edges
  • Inner structure has high toughness and chipping resistance along with thermal shock resistance
  • Recommended cermet for stable steel machining and high quality surface finish
  • https://youtu.be/moxzwEbjweU
