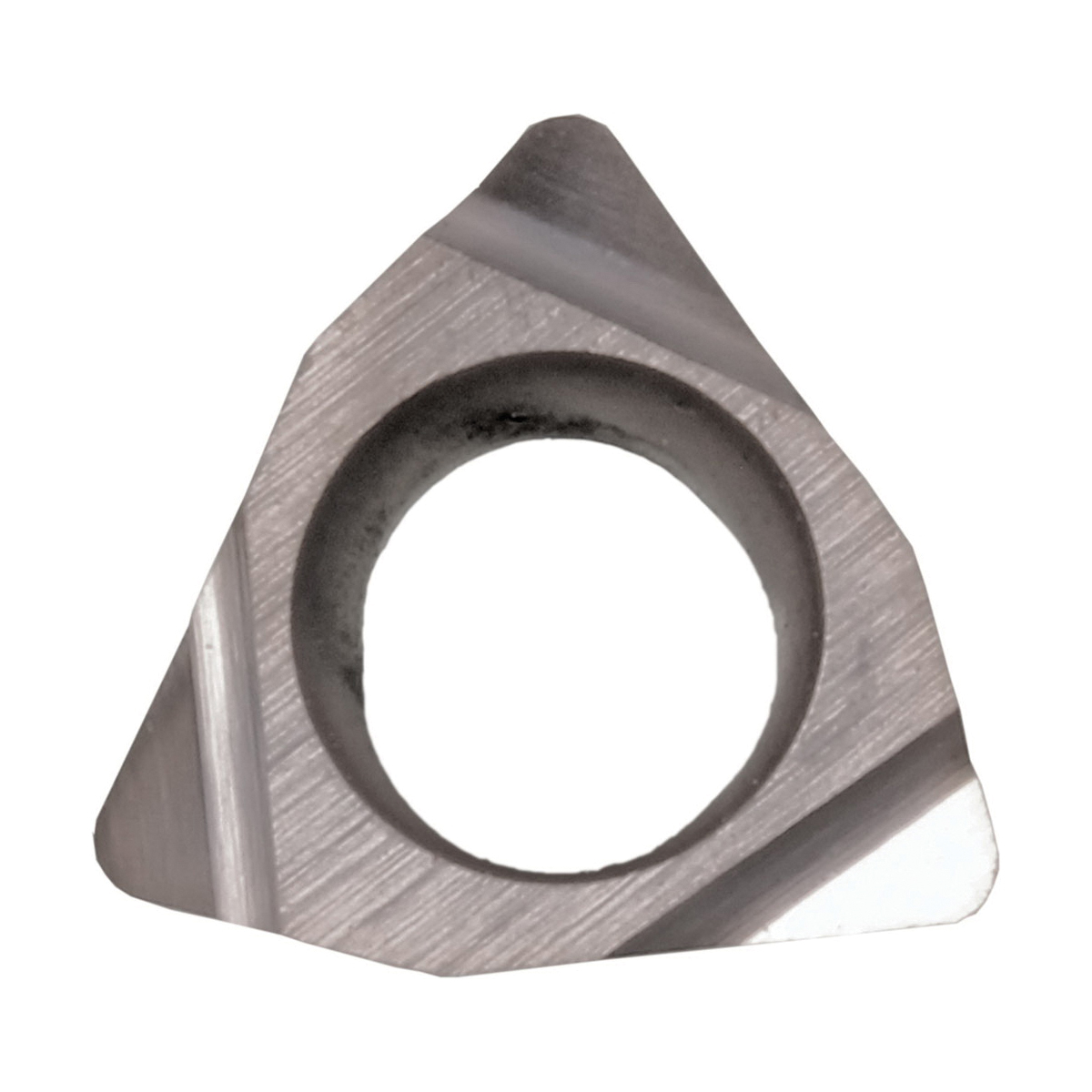

WBGT12102LFTN60 TURNING INSERT

WBGT12102LFTN60 TURNING INSERT

KYOCTSJ03695 TSJ03695
16.59 / EA
http://schema.org/OutOfStock
WBGT12102LFTN60 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: F
  • Corner Radius: 0.0039in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.0906in
  • Included Angle: 80°
  • Inscribed Circle: 5/32in
  • Insert Size: #12102
  • Insert Style: WBGT
  • ISO Code: WBGT12102LFTN60
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 5°
  • Seat Size: 12
  • Shape: Trigon
  • Surface Treatment: Uncoated/TiCN/NbC Coated
  • Thickness: 1/16in
  • Type: 3-Cutting Edge
  • ANSI Code: WBGT12102LFTN60
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN60
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Sharp edge with 3 cutting edges
  • General purpose cermet with superior wear resistance and toughness
  • Good chip control at finishing to light machining with low cutting force
  • Cutting of steel and stainless steel
ECCN: EAR99
