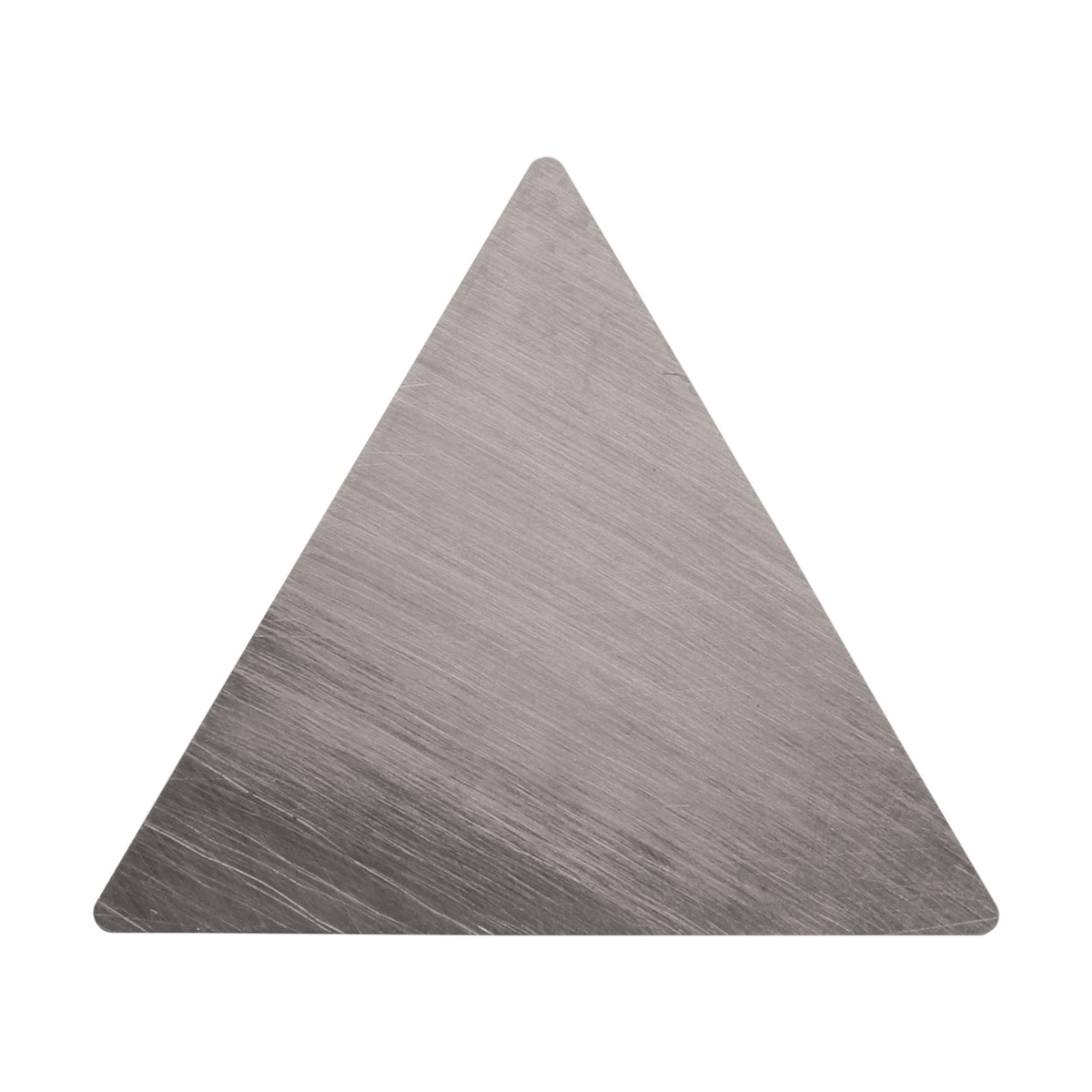

TPG18151TN60 TURNING INSERT
TPG18151TN60 TURNING INSERT
KYOCTSJ02657
TSJ02657
8.29
/ EA
http://schema.org/OutOfStock
/Product/KYOCTSJ02657
- Applicable Materials: Carbon/Alloy Steel
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Included Angle: 60°
- Inscribed Circle: 7/32in
- Insert Size: #18151
- Insert Style: TPG
- ISO Code: TPGN090204
- Material: Cermet
- Material Grade: P
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 9
- Shape: Triangle
- Surface Treatment: Uncoated/TiCN/NbC Coated
- Thickness: 3/32in
- Type: 3-Cutting Edge
- ANSI Code: TPG18151TN60
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TN60
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Chamfering and Boring Applications
- General purpose cermet with superior wear resistance and toughness
- Without hole and chipbreaker
- Cutting of steel and stainless steel
ECCN: EAR99
