KYOCERA PRECISION TOOLS

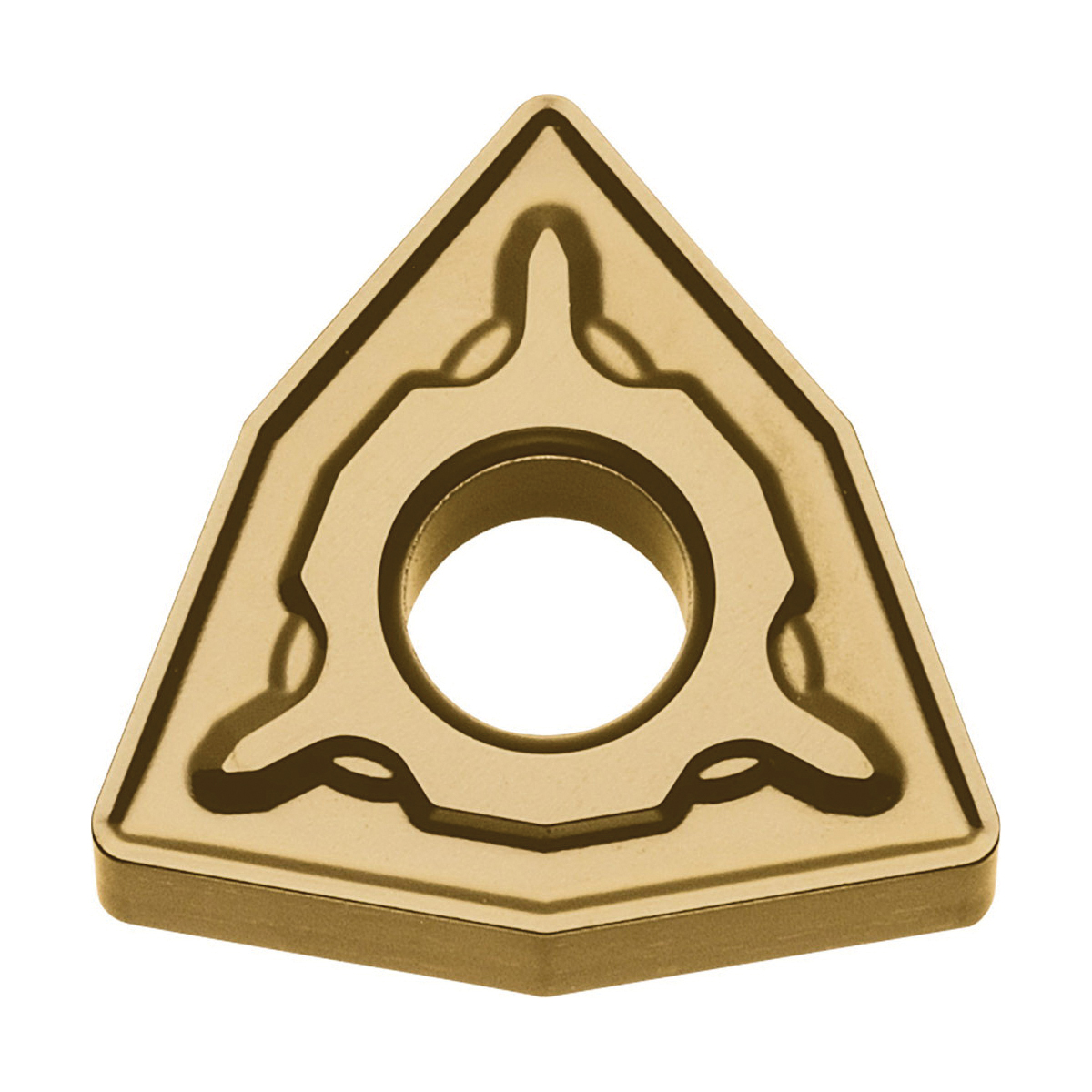

WNMG433PHCA025P TURNING INSERT

WNMG433PHCA025P TURNING INSERT

KYOCTMH00362 TMH00362
9.31 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: PH
  • Corner Radius: 3/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #433
  • Insert Style: WNMG
  • ISO Code: WNMG080412PH
  • Material: Carbide
  • Material Grade: P
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 08, 8
  • Shape: Trigon
  • Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
  • Thickness: 3/16in
  • Type: 6-Cutting Edge
  • Manufacturer Grade: CA025P
  • ANSI Code: WNMG433PHCA025P
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
QTY
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion
  • For roughing of steel
  • Suitable for heavy interrupted machining and for workpieces with scale due to strong cutting edge
  • General to interrupted machining of steel
ECCN: EAR99
