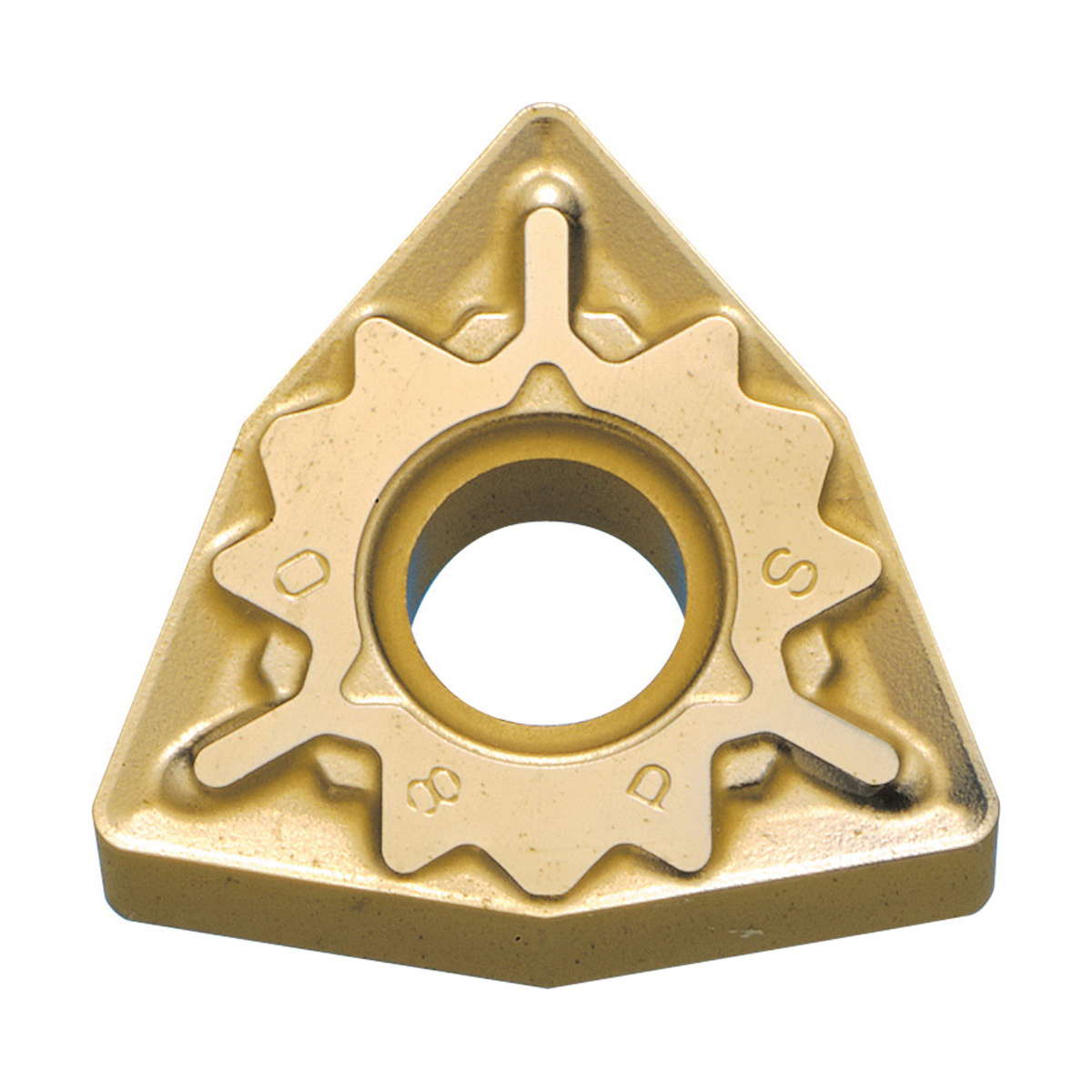

WNMG433PSCA025P TURNING INSERT
WNMG433PSCA025P TURNING INSERT
KYOCTMH00352
TMH00352
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTMH00352
- Applicable Materials: Carbon/Alloy Steel
- Chipbreaker: PS
- Corner Radius: 3/64in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #433
- Insert Style: WNMG
- ISO Code: WNMG080412PS
- Material: Carbide
- Material Grade: P
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 8
- Shape: Trigon
- Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
- Thickness: 3/16in
- Type: 6-Cutting Edge
- Manufacturer Grade: CA025P
- ANSI Code: WNMG433PSCA025P
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Boring and Internal Facing Applications
- Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion
- General purpose chipbreaker
- More stable due to large contact surface
- General to interrupted machining of steel
ECCN: EAR99
