KYOCERA PRECISION TOOLS

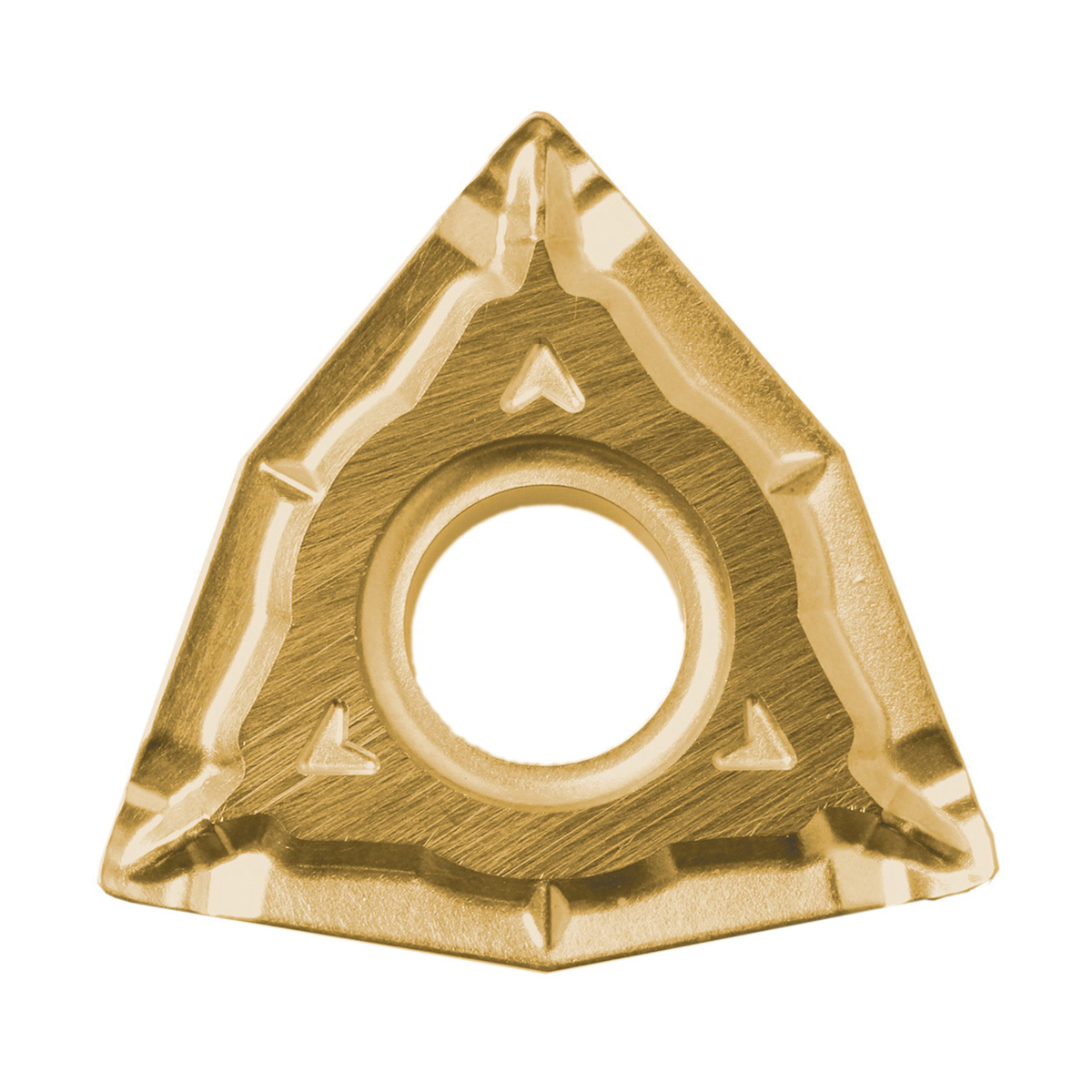

WNMG433WQCA025P TURNING INSERT

WNMG433WQCA025P TURNING INSERT

KYOCTMH00335 TMH00335
8.16 / EA
http://schema.org/OutOfStock
  • Insert Style: WNMG
  • Insert Size: #433
  • Corner Radius: 3/64in
  • Manufacturer Grade: CA025P
  • Chipbreaker: WQ
  • ISO Code: WNMG080412WQ
  • ANSI Code: WNMG433WQCA025P
  • Included Angle: 80°
  • Shape: Trigon
  • Material Grade: P
  • Seat Size: 8
  • Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
  • Inscribed Circle: 1/2in
  • Applicable Materials: Carbon/Alloy Steel
  • Country of Origin: US|JP|CN|KR
  • Hand Direction: Neutral
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 0.2031in
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Rake: Negative
  • Relief Angle:
  • Thickness: 3/16in
  • Type: 6-Cutting Edge
QTY
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Wiper edge with 6 cutting edges
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion
  • Wiper insert
  • Double feed rate possible while maintaining a smooth finish
  • High efficiency and good chip control
  • General to interrupted machining of steel
ECCN: EAR99
