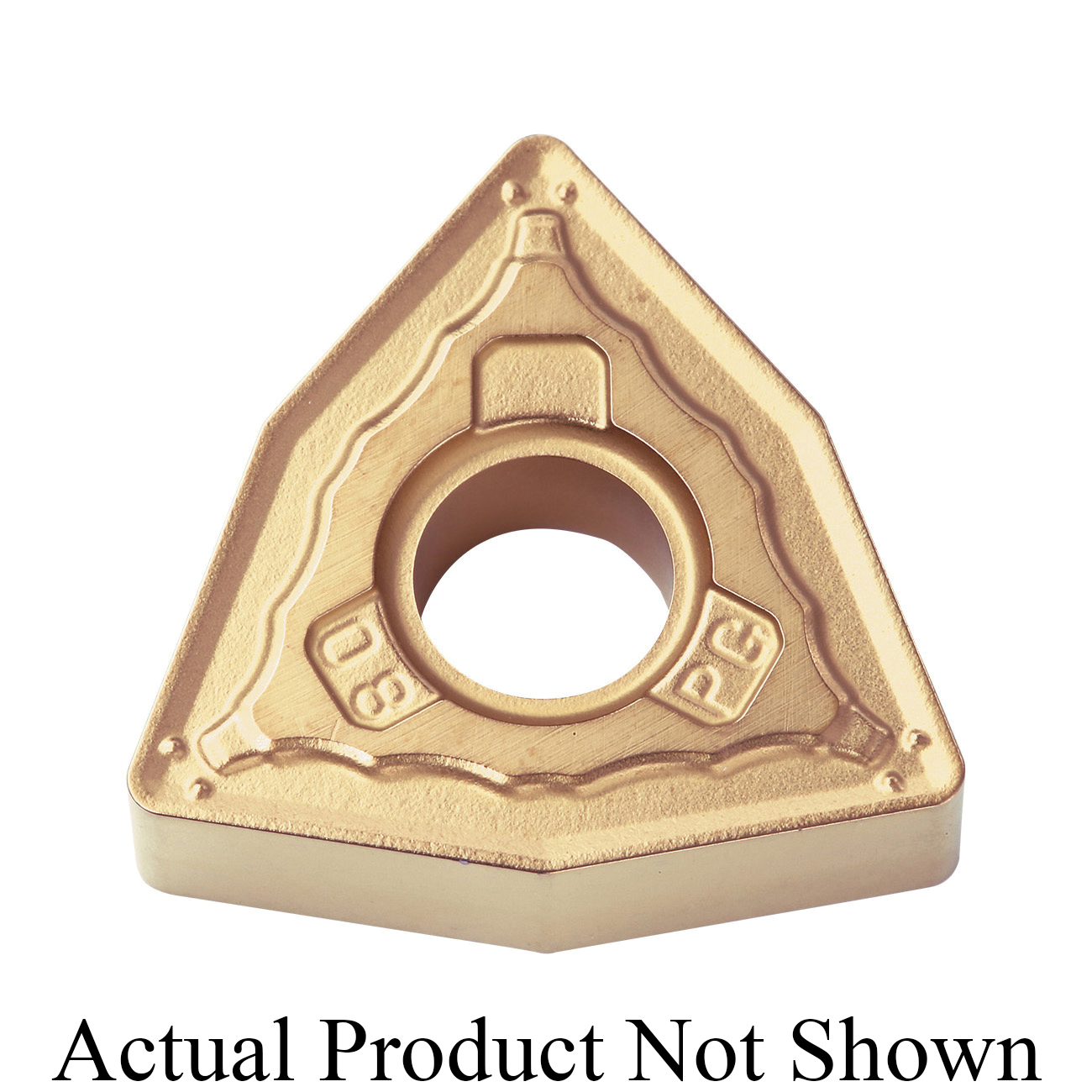

WNMG434PGCA025P TURNING INSERT
WNMG434PGCA025P TURNING INSERT
KYOCTMH00071
TMH00071
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTMH00071
- Applicable Materials: Carbon/Alloy Steel
- Chipbreaker: PG
- Corner Radius: 0.063in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #434
- Insert Style: WNMG
- ISO Code: WNMG080416PG
- Material: Carbide
- Material Grade: P
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 8
- Shape: Trigon
- Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
- Thickness: 0.1874in
- Type: 6-Cutting Edge
- Manufacturer Grade: CA025P
- ANSI Code: WNMG434PGCA025P
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Boring, External Turning, Facing and Internal Facing Applications
- Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion.
- General to interrupted machining of steel
- https://youtu.be/JtpWH8WMlbQ
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
