KYOCERA PRECISION TOOLS

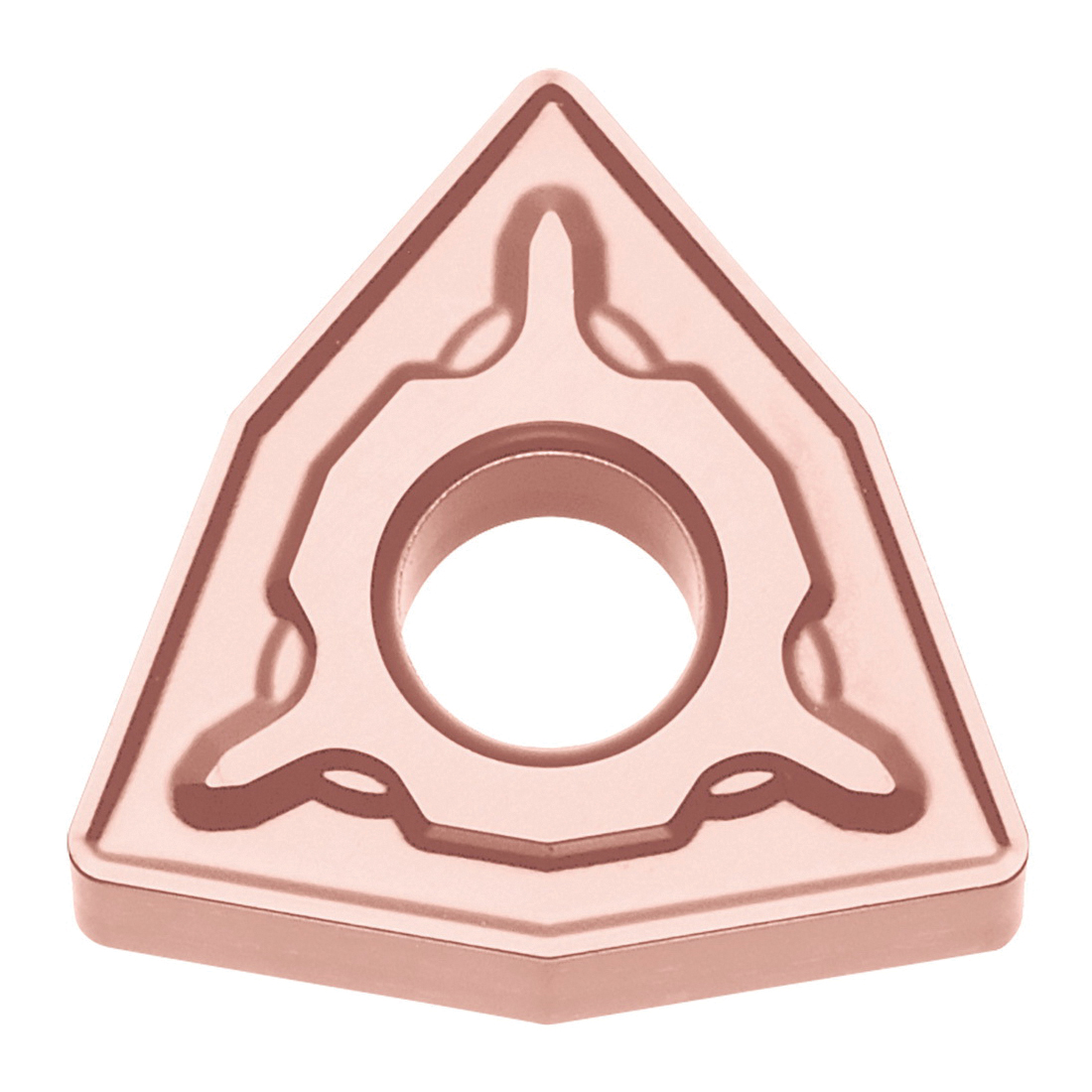

WNMG433PHCA320 TURNING INSERT

WNMG433PHCA320 TURNING INSERT

KYOCTME08546 TME08546
9.31 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Cast Iron
  • Chipbreaker: PH
  • Corner Radius: 3/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 433
  • Insert Style: WNMG
  • ISO Code: WNMG080412PH CA320
  • Material: Carbide
  • Material Grade: K
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: CVD-TiCN/Al2O3 Coated
  • Thickness: 3/16in
  • Type: 2-Sided
  • Manufacturer Grade: CA320
  • ANSI Code: WNMG433PHCA320
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
QTY
  • Application
  • Item Features
Roughing and General Turning
  • Improved coating adhesion prevents chipping and provides stable machining
  • Micro TiCN coating provides excellent wear resistance
  • Hard surface layer - provides advanced wear resistance
  • Strong intra coating adhesion - higher adhesion between each layer with improved crystal structure
  • Micro TiCN layer - higher coating hardness is possible due to a micro TiCN crystal structure, resulting in increased wear resistance
  • CA320 grade for interrupted machining
  • Improved stability with CVD layer structure with high adhesion
  • Long tool life for nodular cast iron during heavily interrupted or high speed machining
  • PH chipbreaker - for roughing of steel
  • Suitable for heavy interrupted machining and for workpieces with scale due to strong cutting edge
