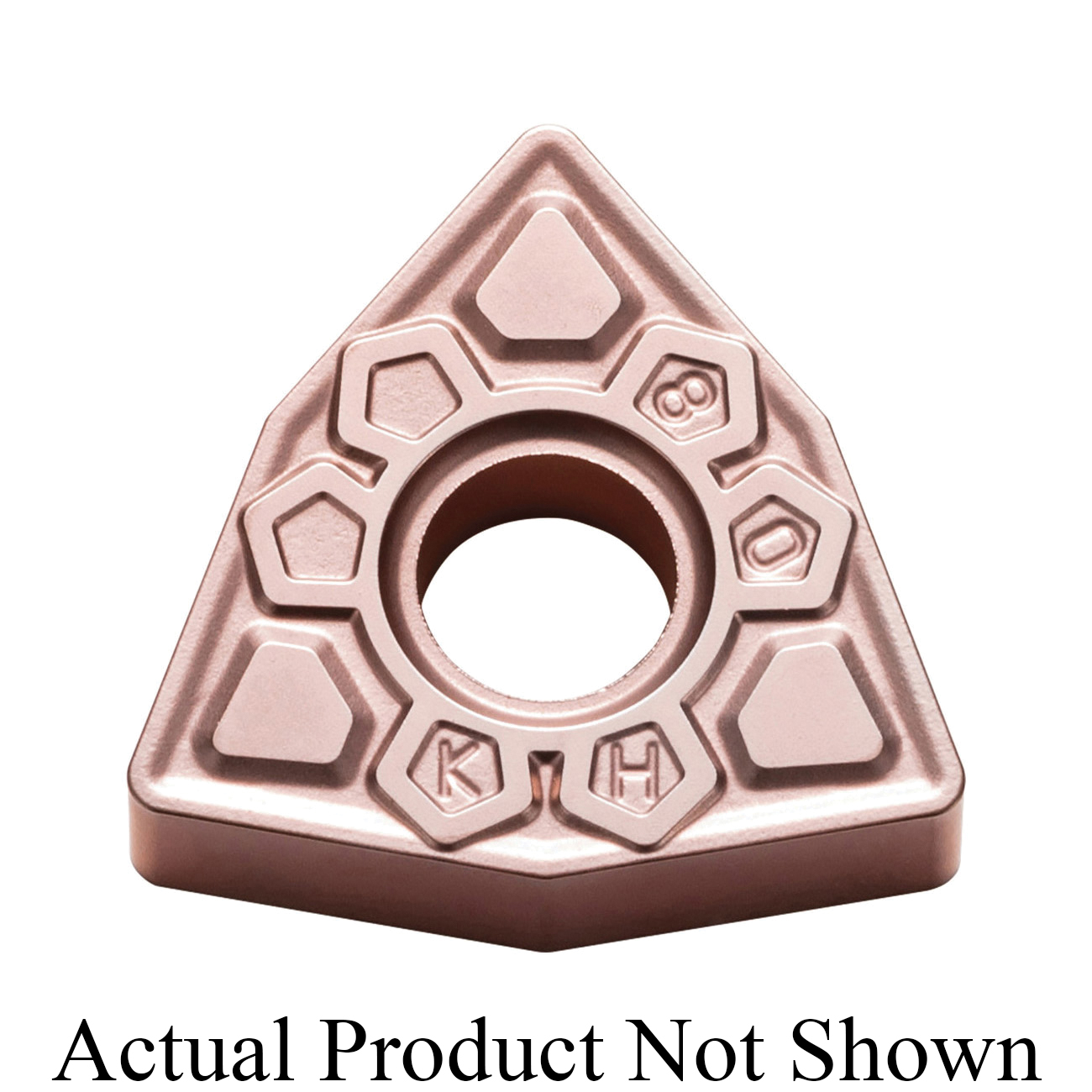

WNMG434KHCA315 TURNING INSERT
WNMG434KHCA315 TURNING INSERT
KYOCTMD08674
TMD08674
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTMD08674
- Applicable Materials: Gray Cast Iron and Nodular Cast Iron
- Chipbreaker: KH
- Corner Radius: 0.063in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #434
- Insert Style: WNMG
- ISO Code: WNMG080416KH
- Material: Carbide
- Material Grade: K
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 08, 8
- Shape: Trigon
- Surface Treatment: CVD-TiCl2O3/TiN Coated
- Thickness: 0.1874in
- Type: 6-Cutting Edge
- Manufacturer Grade: CA315
- ANSI Code: WNMG434KHCA315
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Boring, External Turning, Facing and Internal Facing Applications
- Cast iron with 6-cutting edges
- Excellent performance for machining gray and nodular cast iron by optimizing the total coating layer thickness
- First choice for continuous to interrupted machining of nodular cast iron
- https://youtu.be/5dgoPgJR5fQ
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
