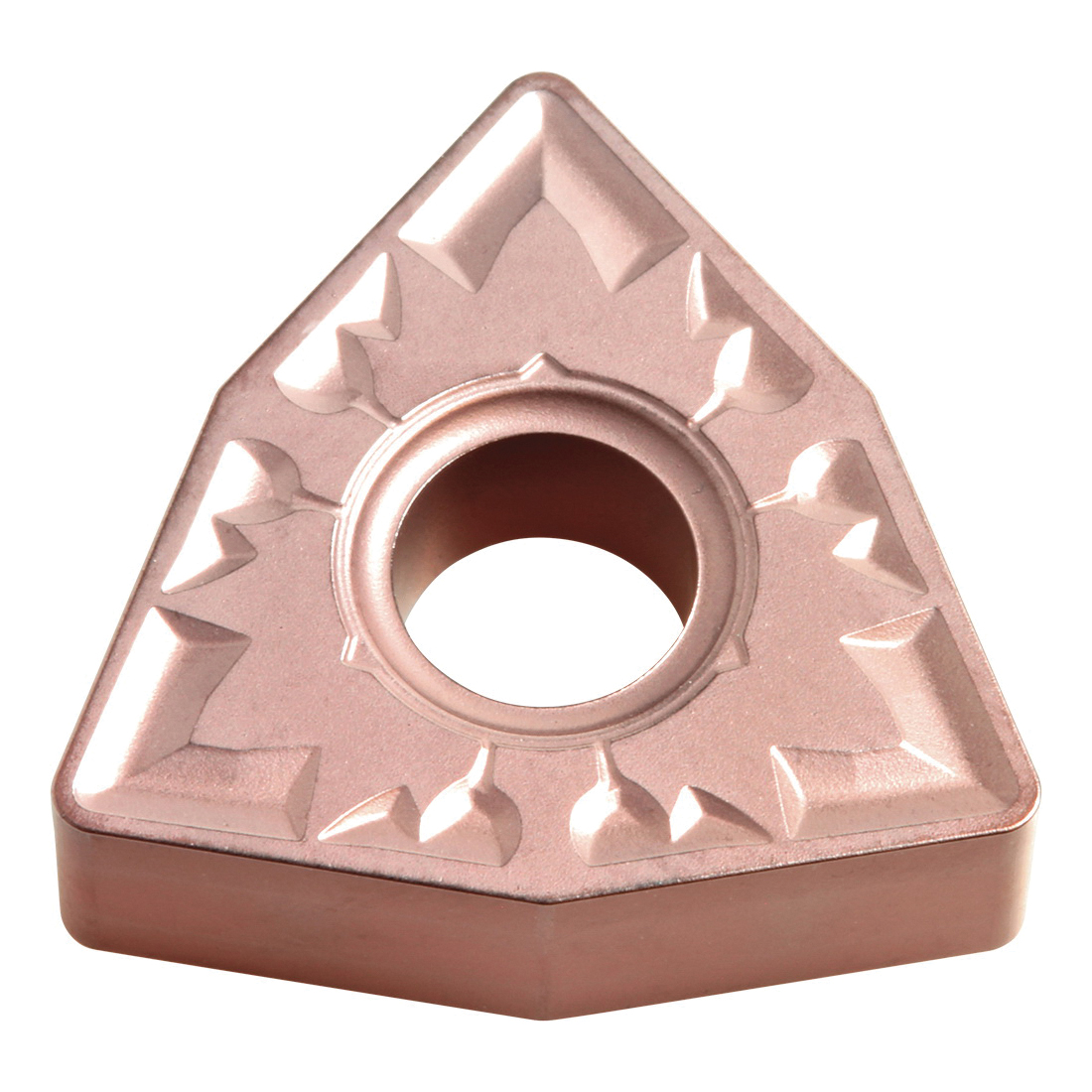

WNMG433ZSCA310 TURNING INSERT
WNMG433ZSCA310 TURNING INSERT
KYOCTMC08621
TMC08621
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTMC08621
- Applicable Materials: Cast Iron
- Chipbreaker: ZS
- Corner Radius: 3/64in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 433
- Insert Style: WNMG
- ISO Code: WNMG080412ZS CA310
- Material: Carbide
- Material Grade: K
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 8
- Shape: Trigon
- Surface Treatment: CVD-TiCN/Al2O3 Coated
- Thickness: 3/16in
- Type: 2-Sided
- Manufacturer Grade: CA310
- ANSI Code: WNMG433ZSCA310
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
General Turning Applications
- Improved coating adhesion prevents chipping and provides stable machining
- Micro TiCN coating provides excellent wear resistance
- Hard surface layer - provides advanced wear resistance
- Strong intra coating adhesion - higher adhesion between each layer with improved crystal structure
- Micro TiCN layer - higher coating hardness is possible due to a micro TiCN crystal structure, resulting in increased wear resistance
- CA310 grade for high speed continuous machining and improved tool life through the deposition of a thickened alumina coating layer
- For finishing to roughing of gray cast iron
- ZS chipbreaker - standard chipbreaker for light interrupted to interrupted machining of cast iron
- High stability
