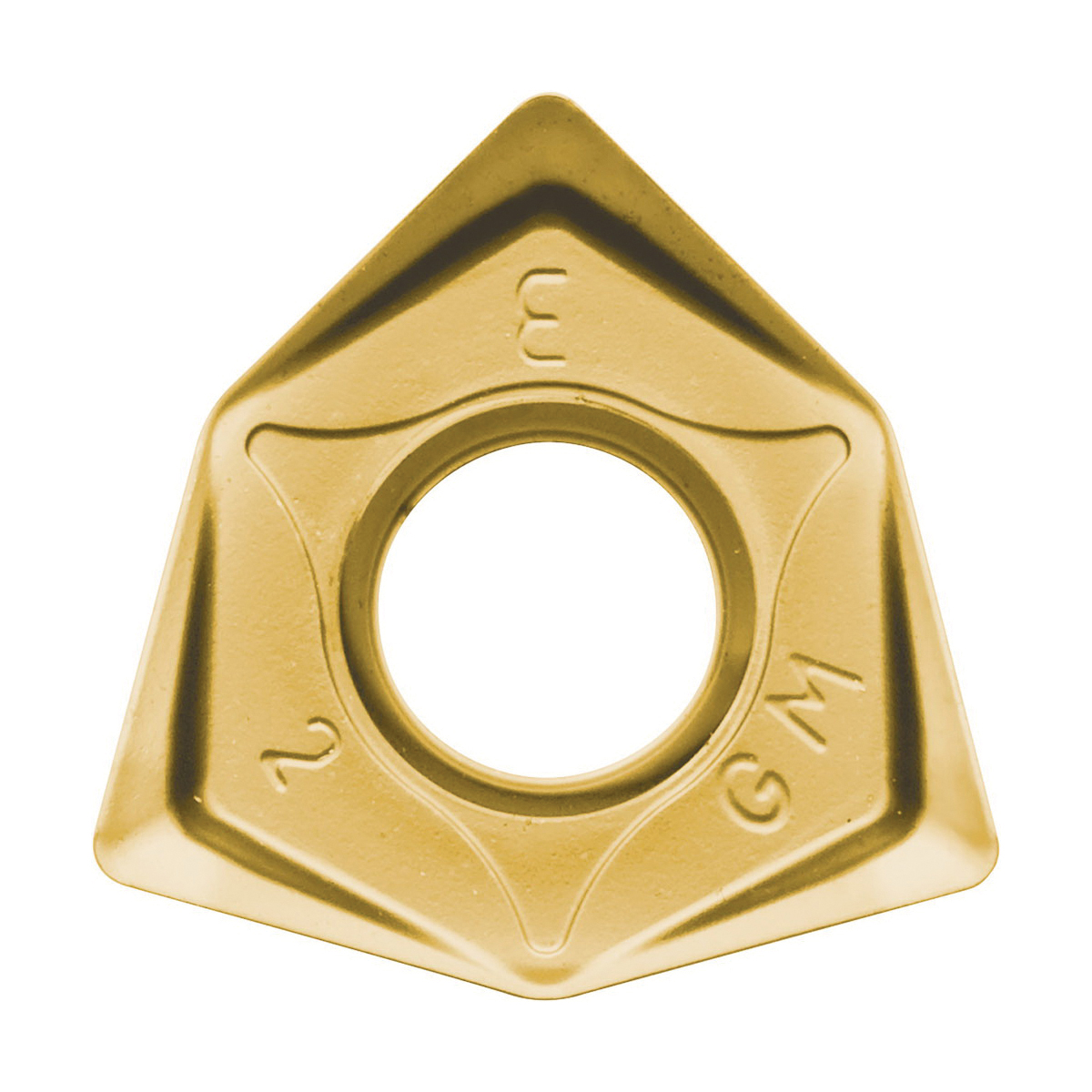

WNMU080608ENGMCA6535 MILLING INSERT
WNMU080608ENGMCA6535 MILLING INSERT
KYOCTMA09310
TMA09310
14.98
/ EA
http://schema.org/OutOfStock
/Product/KYOCTMA09310
- Chipbreaker: EN-GM
- Corner Radius: 1/32in
- Hand of Insert: Neutral
- Hole Diameter: 0.2441in
- Inscribed Circle: 0.552in
- Insert Size: #080608
- Insert Style: WNMU
- Material: Carbide
- Rake: Positive
- Shape: Trigon
- Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
- Thickness: 0.2618in
- Type: 6-Cutting Edge
- Manufacturer Grade: CA6535
- ISO Code: WNMU080608EN-GM
- ANSI Code: WNMU080608ENGMCA6535
- Material Grade: S, M
- Applicable Materials: Heat-Resistant Alloy and Martensitic Stainless Steel
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Lead Angle: 80°
- Manufacturer Name: KYOCERA Precision Tools
- Series: M-SIX (MFWN)
- Application
- Item Features
- Standards
For CVD for Ni-base heat resistant alloy and martensitic stainless steel, facing, shouldering and slotting
- Honed edge with 6 cutting edges
- High heat resistance and wear resistance with CVD coating with improved stability due to thin film coating
ECCN: EAR99
