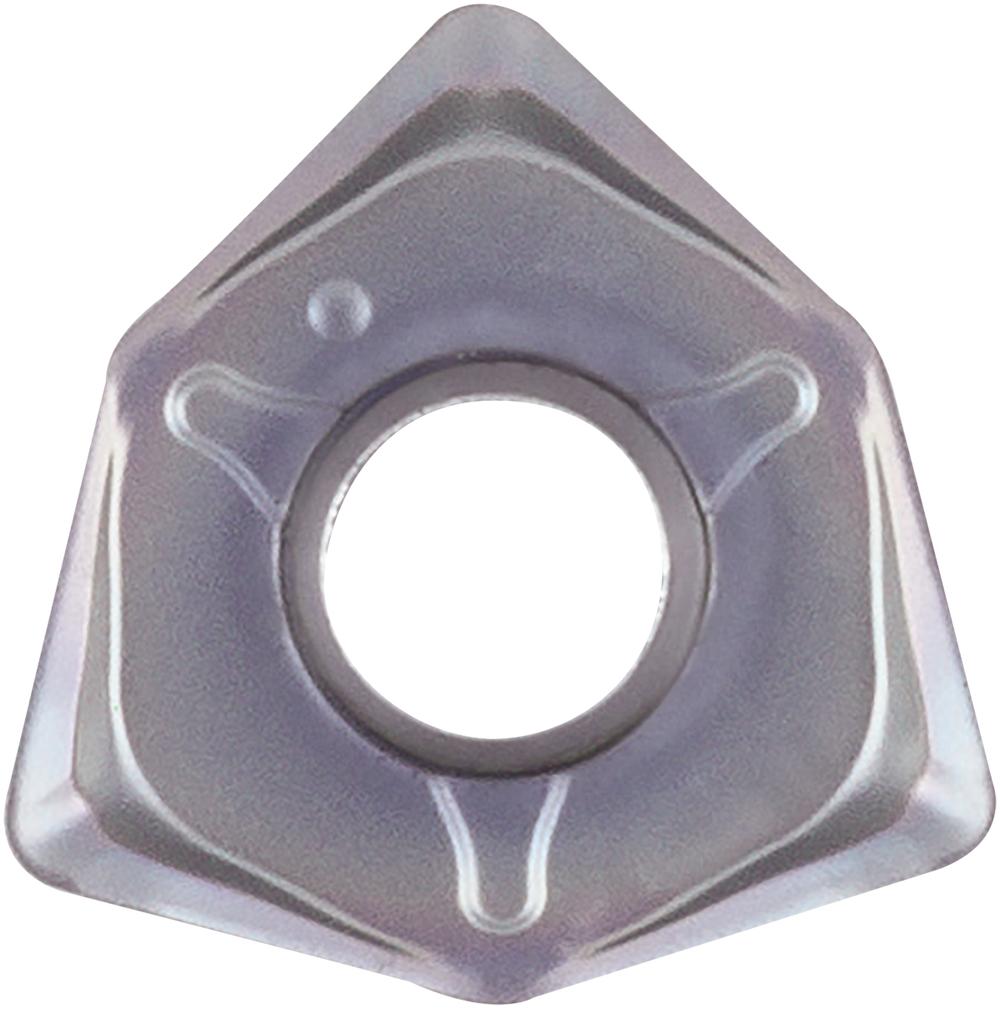

WNMU 050408ENGM PR1835 PVD CARB INSERT

WNMU 050408ENGM PR1835 PVD CARB INSERT

KYOCTLU00121 TLU00121
13.77 / EA
http://schema.org/OutOfStock
  • Chipbreaker: EN-GM
  • Corner Radius: 1/32 in
  • Hand of Insert: Neutral
  • Hole Diameter: 0.134 in
  • Inscribed Circle: 0.346 in
  • Insert Size: 50408
  • Insert Style: WNMU
  • Material: Carbide
  • Rake: Negative
  • Shape: Trigon
  • Surface Treatment: PVD
  • Thickness: 0.165 in
  • Type: 6-Cutting Edge
  • Manufacturer Grade: PR1835
  • ISO Code: WNMU050408EN-GM
  • ANSI Code: WNMU050408ENGMPR1835
  • Material Grade: M, S, P, M
  • Applicable Materials: Austenitic Stainless Steel/Precipitation Hardened Stainless Steel/Titanium Alloy/Carbon Steel/Alloy Steel/Mold Steel/Martensitic Stainless Steel
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Lead Angle: 80 deg
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: MFWN
QTY
  • Application
  • Item Features
  • Standards
For Facing, Shouldering, Slotting
  • MFWN Milling Insert for Facing, Shouldering, Slotting
  • Honed Edge/General Purpose with 6 Cutting Edges
  • Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
ANSI
