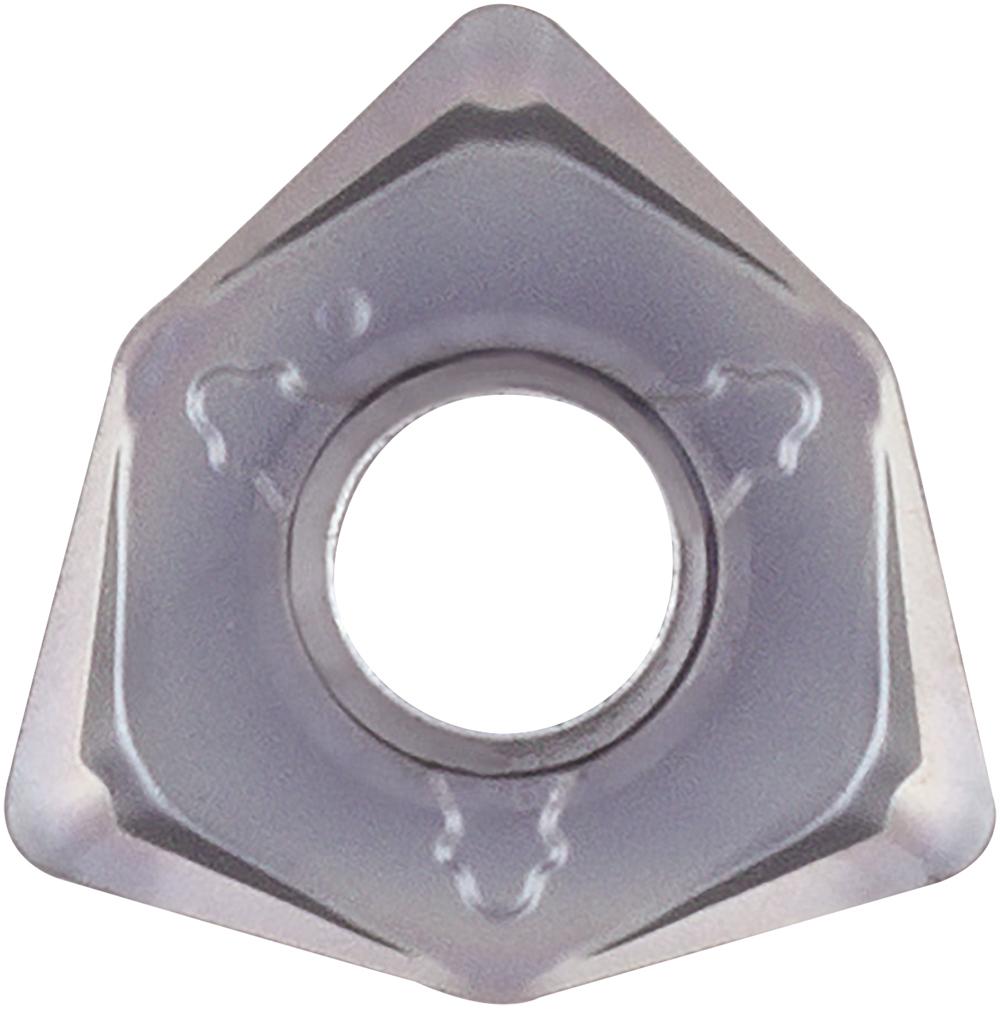

WNMU 050408ENSM PR1825 PVD CARB INSERT
WNMU 050408ENSM PR1825 PVD CARB INSERT
KYOCTLT00143
TLT00143
13.77
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLT00143
- Chipbreaker: EN-SM
- Corner Radius: 1/32 in
- Hand of Insert: Neutral
- Hole Diameter: 3.40 in
- Inscribed Circle: 0.346 in
- Insert Size: 50408
- Insert Style: WNMU
- Material: Carbide
- Rake: Negative
- Shape: Trigon
- Surface Treatment: PVD
- Thickness: 0.165 in
- Type: 6-Cutting Edge
- Manufacturer Grade: PR1825
- ISO Code: WNMU050408EN-SM
- ANSI Code: WNMU050408ENSMPR1825
- Material Grade: P, M
- Applicable Materials: Carbon Steel/Alloy Steel/Mold Steel/Austenitic Stainless Steel
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Lead Angle: 80 deg
- Manufacturer Name: KYOCERA Precision Tools
- Series: MFWN
- Application
- Item Features
- Standards
For Facing, Shouldering, Slotting
- MFWN Milling Insert for Facing, Shouldering, Slotting
- Honed Edge/Low Cutting Force with 6 Cutting Edges
- Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
ANSI
