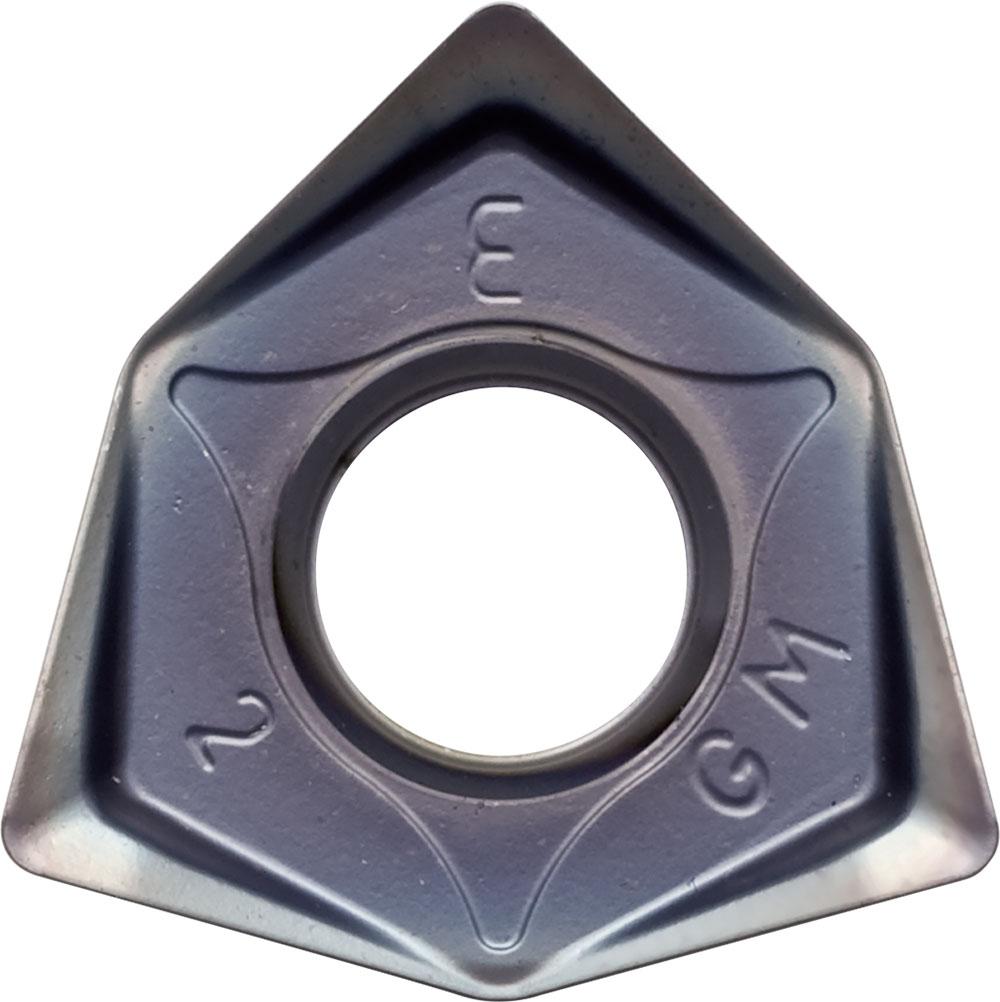

WNMU 080608ENGM PR1825 PVD CARB INSERT
WNMU 080608ENGM PR1825 PVD CARB INSERT
KYOCTLT00139
TLT00139
17.37
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLT00139
- Chipbreaker: EN-GM
- Corner Radius: 1/32 in
- Hand of Insert: Neutral
- Hole Diameter: 6.20 in
- Inscribed Circle: 0.552 in
- Insert Size: 80608
- Insert Style: WNMU
- Material: Carbide
- Rake: Negative
- Shape: Trigon
- Surface Treatment: PVD
- Thickness: 0.262 in
- Type: 6-Cutting Edge
- Manufacturer Grade: PR1825
- ISO Code: WNMU080608EN-GM
- ANSI Code: WNMU080608ENGMPR1825
- Material Grade: P, M
- Applicable Materials: Carbon Steel/Alloy Steel/Mold Steel/Austenitic Stainless Steel
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Lead Angle: 80 deg
- Manufacturer Name: KYOCERA Precision Tools
- Series: MFWN
- Application
- Item Features
- Standards
For Facing, Shouldering, Slotting
- MFWN Milling Insert for Facing, Shouldering, Slotting
- Honed Edge/General Purpose with 6 Cutting Edges
- Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
ANSI
