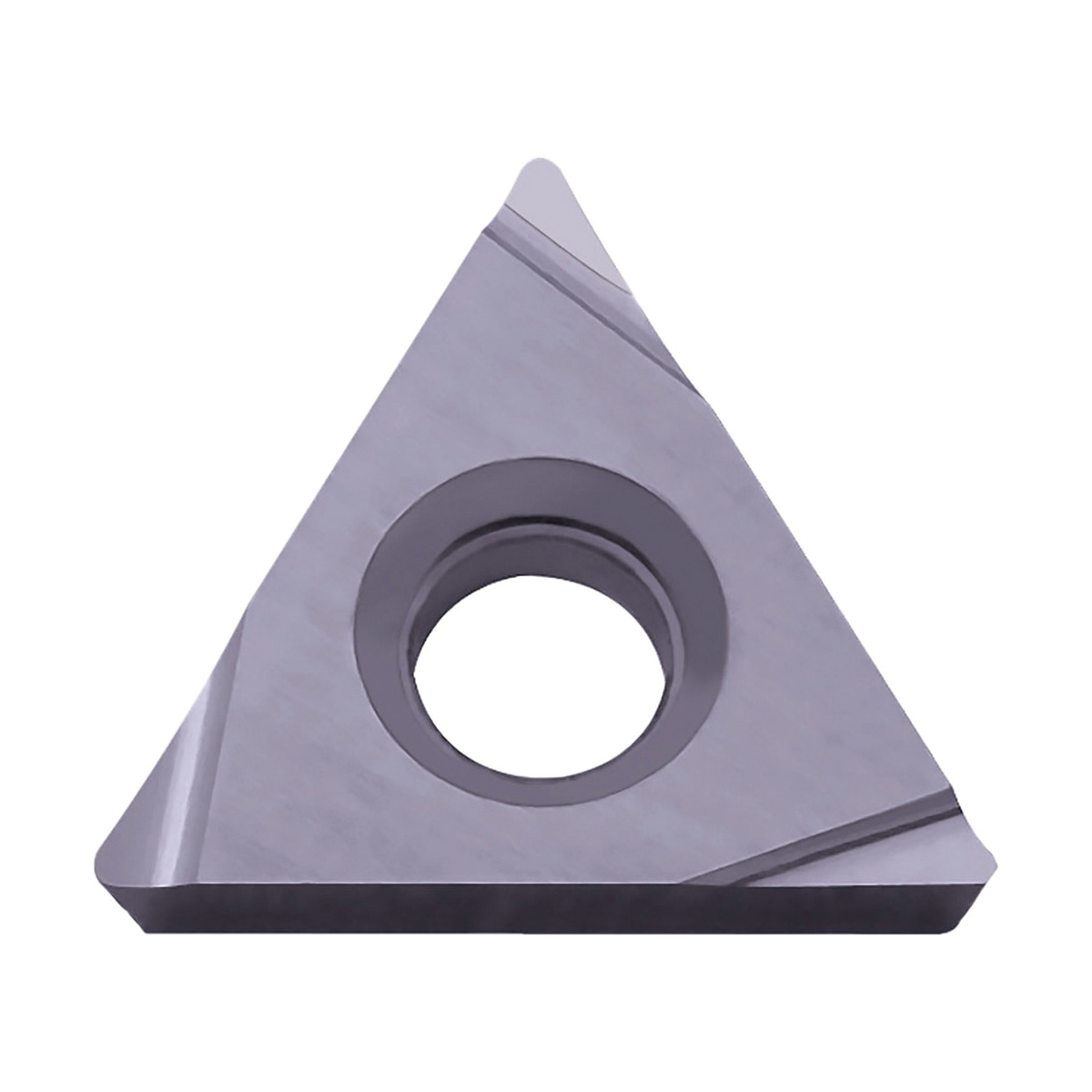

TPET2202MLFSFPR1725 TURNING INSERT

TPET2202MLFSFPR1725 TURNING INSERT

KYOCTLM40243 TLM40243
17.53 / EA
http://schema.org/OutOfStock
TPET2202MLFSFPR1725 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
  • Chipbreaker: FSF
  • Corner Radius: 0.0039in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.1299in
  • Included Angle: 60°
  • Inscribed Circle: 1/4in
  • Insert Size: #2202
  • Insert Style: TPET
  • ISO Code: TPET110301ML-FSF
  • Material: Carbide
  • Material Grade: P, M
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 11
  • Shape: Triangular
  • Surface Treatment: PVD-MEGACOAT NANO PLUS
  • Thickness: 0.1252in
  • Type: 3-Cutting Edge
  • ANSI Code: TPET2202MLFSFPR1725
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1725
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Back Boring, Boring, Copying, External Turning and Internal Facing Applications
  • Sharp edge/precision/super fine/minus tolerance corner radius with 3-cutting edges
  • MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high quality surface finish in steel and stainless applications
  • https://youtu.be/hvkVgOy7GjA
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
