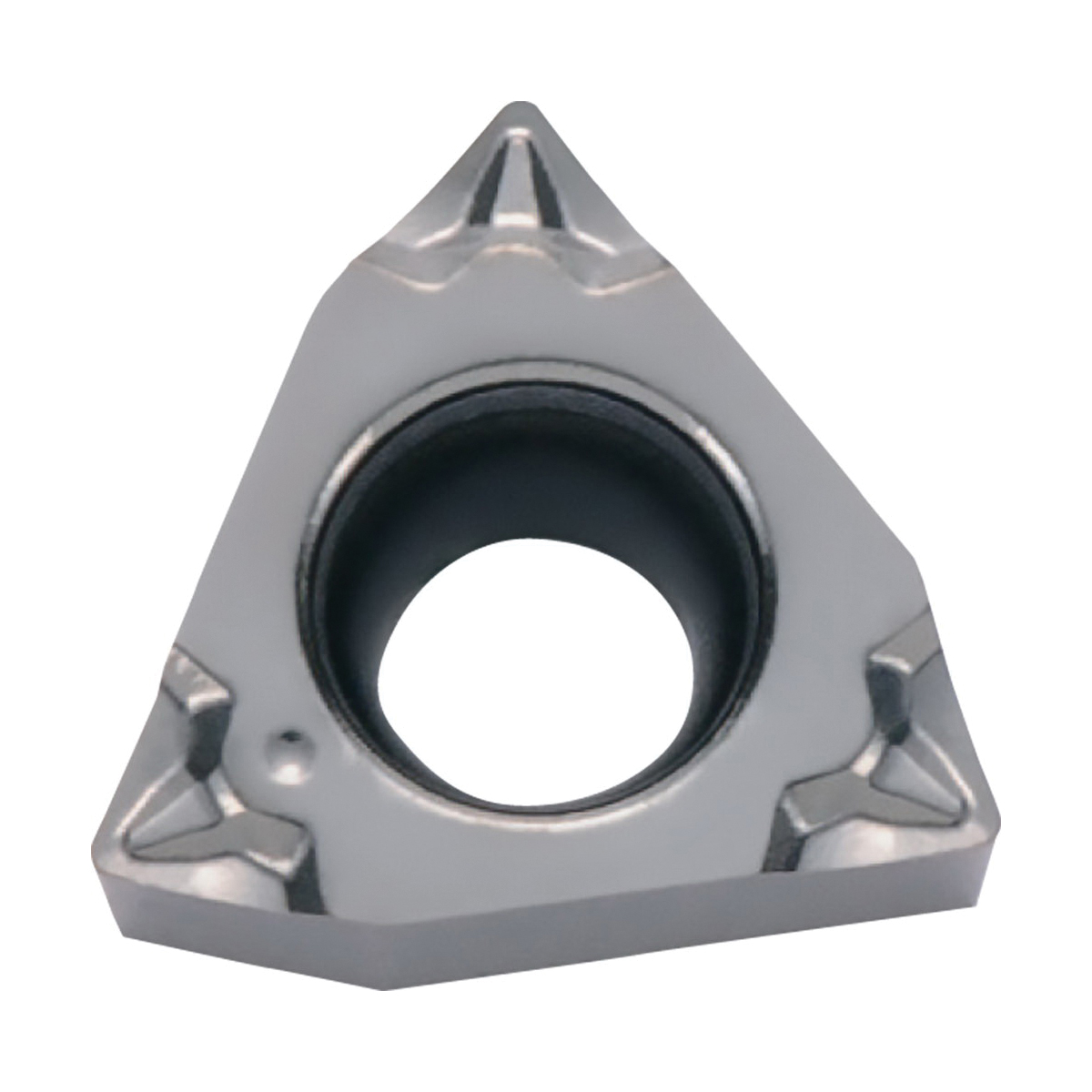

WBGT151505MFPLPFPR1725 TURNING INSERT
WBGT151505MFPLPFPR1725 TURNING INSERT
KYOCTLM00519
TLM00519
23.75
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLM00519
- Applicable Materials: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
- Chipbreaker: PF
- Corner Radius: <0.0079in
- Hand Direction: Left Hand
- Hole Diameter: 0.0906in
- Included Angle: 80°
- Inscribed Circle: 3/16in
- Insert Size: #151505
- Insert Style: WBGT
- ISO Code: WBGT080202MFPL-PF
- Material: Carbide
- Material Grade: P, M
- Rake: Positive
- Relief Angle: 5°
- Seat Size: 8
- Shape: Trigon
- Surface Treatment: PVD-MEGACOAT NANO PLUS
- Thickness: 3/32in
- Type: 3-Cutting Edge
- ANSI Code: WBGT151505MFPLPFPR1725
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1725
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Sharp edge/polished/minus tolerance corner radius with 3 cutting edges
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high quality surface finish in steel and stainless applications
- https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PVD_Coating_for_Small_Parts_Machining.mp4
ECCN: EAR99
