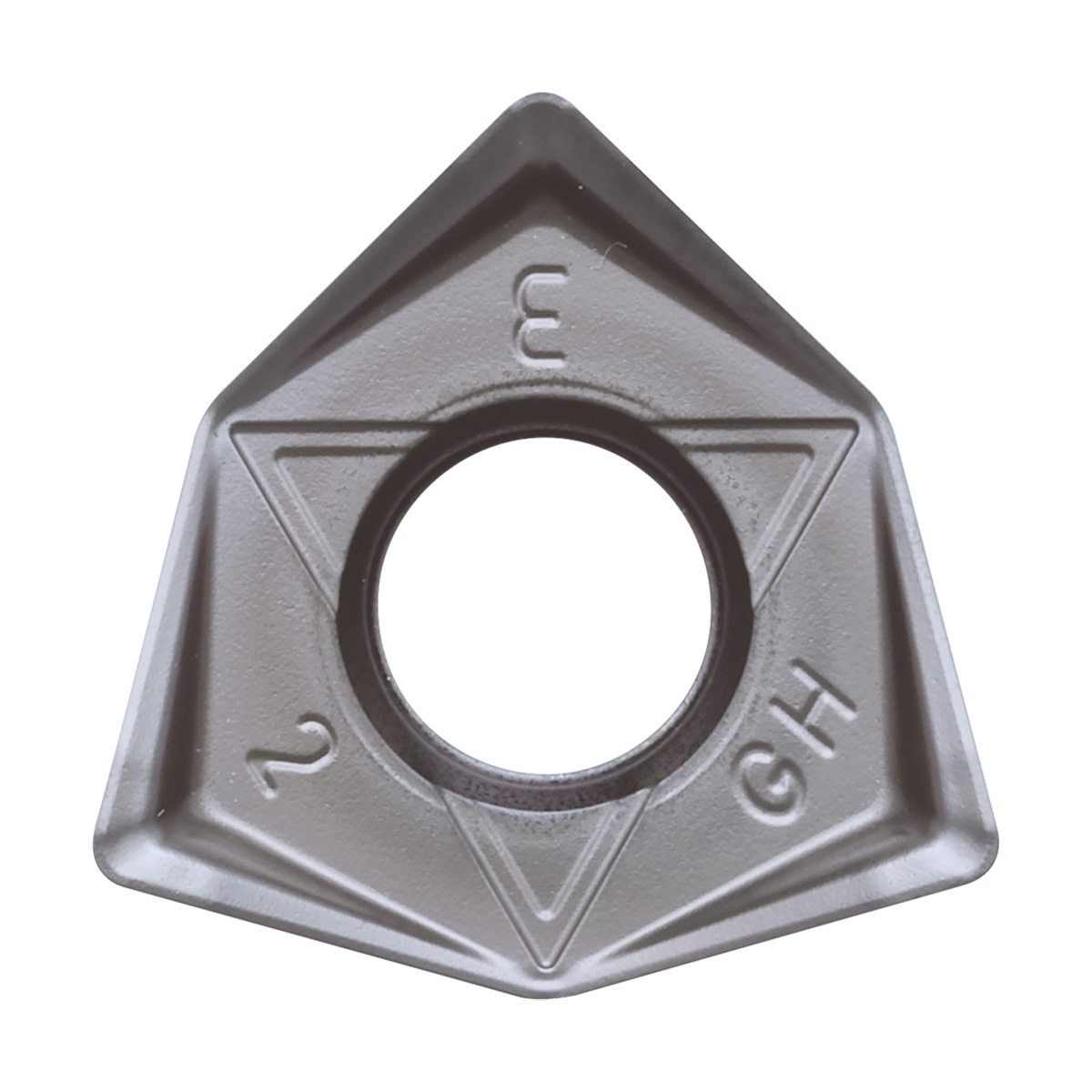

WNMU080608ENGHPR015S MILLING INSERT
WNMU080608ENGHPR015S MILLING INSERT
KYOCTLJ59006
TLJ59006
15.74
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLJ59006
- Chipbreaker: EN-GH
- Corner Radius: 0.0315in
- Hand of Insert: Neutral
- Hole Diameter: 0.2441in
- Inscribed Circle: 0.552in
- Insert Size: #080608
- Insert Style: WNMU
- Material: Carbide
- Rake: Negative
- Shape: Trigon
- Surface Treatment: PVD-MEGACOAT HARD
- Thickness: 0.2618in
- Type: 6-Cutting Edge
- Manufacturer Grade: PR015S
- ISO Code: WNMU080608EN-GH
- ANSI Code: WNMU080608ENGHPR015S
- Material Grade: H
- Applicable Materials: Hardened Material
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Lead Angle: 80°
- Manufacturer Name: KYOCERA Precision Tools
- Series: MFWN
- Application
- Item Features
- Standards
Facing, Shouldering and Slotting Applications
- Insert for facing, shouldering, slotting
- Honed edge/tough edge (heavy milling) with 6-cutting edges
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- General purpose grade with excellent wear resistance and stability for continuous to light interrupted heat-resistant alloy
- https://youtu.be/lLbrw8K_8Rw
