KYOCERA PRECISION TOOLS

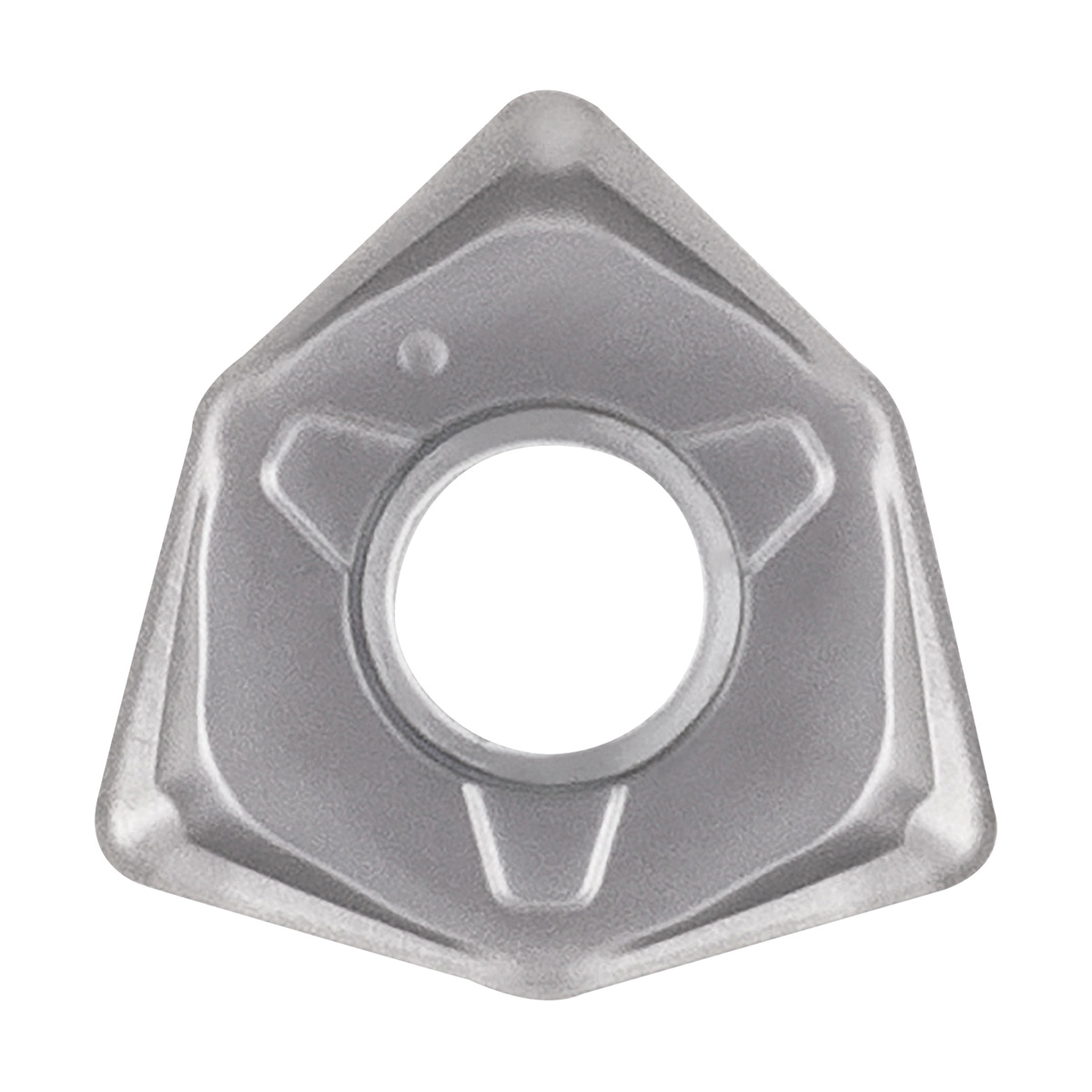

WNMU050408ENGHPR015S MILLING INSERT

WNMU050408ENGHPR015S MILLING INSERT

KYOCTLJ40004 TLJ40004
13.26 / EA
http://schema.org/OutOfStock
  • Chipbreaker: EN-GH
  • Corner Radius: 0.0315in
  • Hand of Insert: Neutral
  • Hole Diameter: 0.1339in
  • Inscribed Circle: 0.3465in
  • Insert Size: #050408
  • Insert Style: WNMU
  • Material: Carbide
  • Rake: Negative
  • Shape: Trigon
  • Surface Treatment: PVD-MEGACOAT HARD
  • Thickness: 0.1654in
  • Type: 6-Cutting Edge
  • Manufacturer Grade: PR015S
  • ISO Code: WNMU050408EN-GH
  • ANSI Code: WNMU050408ENGHPR015S
  • Material Grade: H
  • Applicable Materials: Hardened Material
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Lead Angle: 80°
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: MFWN
QTY
  • Application
  • Item Features
  • Standards
Facing, Shouldering and Slotting Applications
  • Insert for facing, shouldering, slotting
  • Honed edge/tough edge (heavy milling) with 6-cutting edges
  • Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
  • Resists heat concentration at the cutting edge to promote stable machining
  • General purpose grade with excellent wear resistance and stability for continuous to light interrupted heat-resistant alloy
