WPMT 322HQ PV710 TURNING INSERT

WPMT 322HQ PV710 TURNING INSERT

KYOCTLF09016 TLF09016
9.42 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: HQ

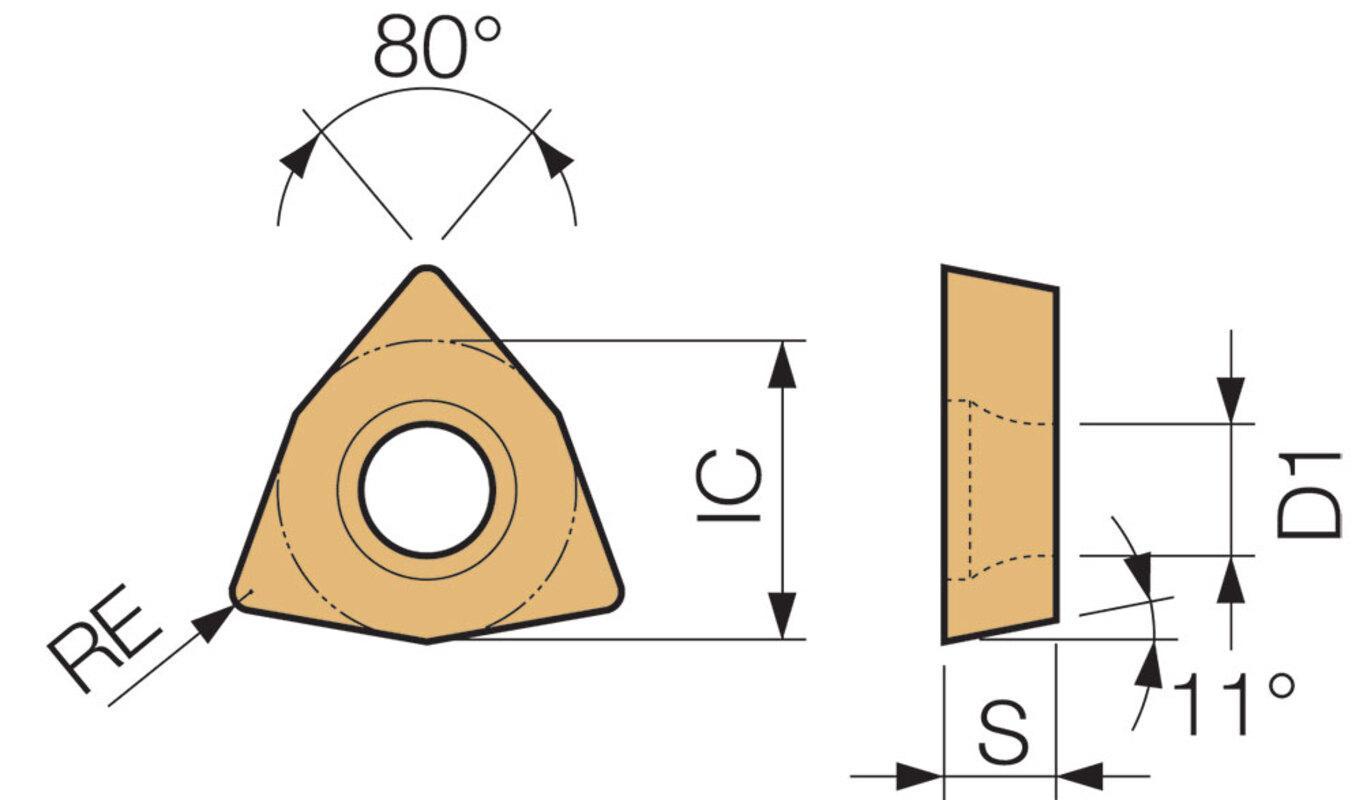

  • Corner Radius: 0.0315 in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1732 in
  • Included Angle: 80 deg
  • Inscribed Circle: 3/8 in
  • Insert Size: #322
  • Insert Style: WPMT
  • ISO Code: WPMT160308HQ
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 11 deg
  • Seat Size: 16
  • Shape: Trigon
  • Surface Treatment: PVD-TiCN/MEGACOAT NANO
  • Thickness: 0.1252 in
  • Type: 3-Cutting Edge
  • Manufacturer Grade: PV710
  • ANSI Code: WPMT322HQPV710
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
  • Application
  • Item Features
  • Standards
Boring Applications
  • MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
  • Recommended cermet for long tool life and stable machining for high speed continuous cuts
