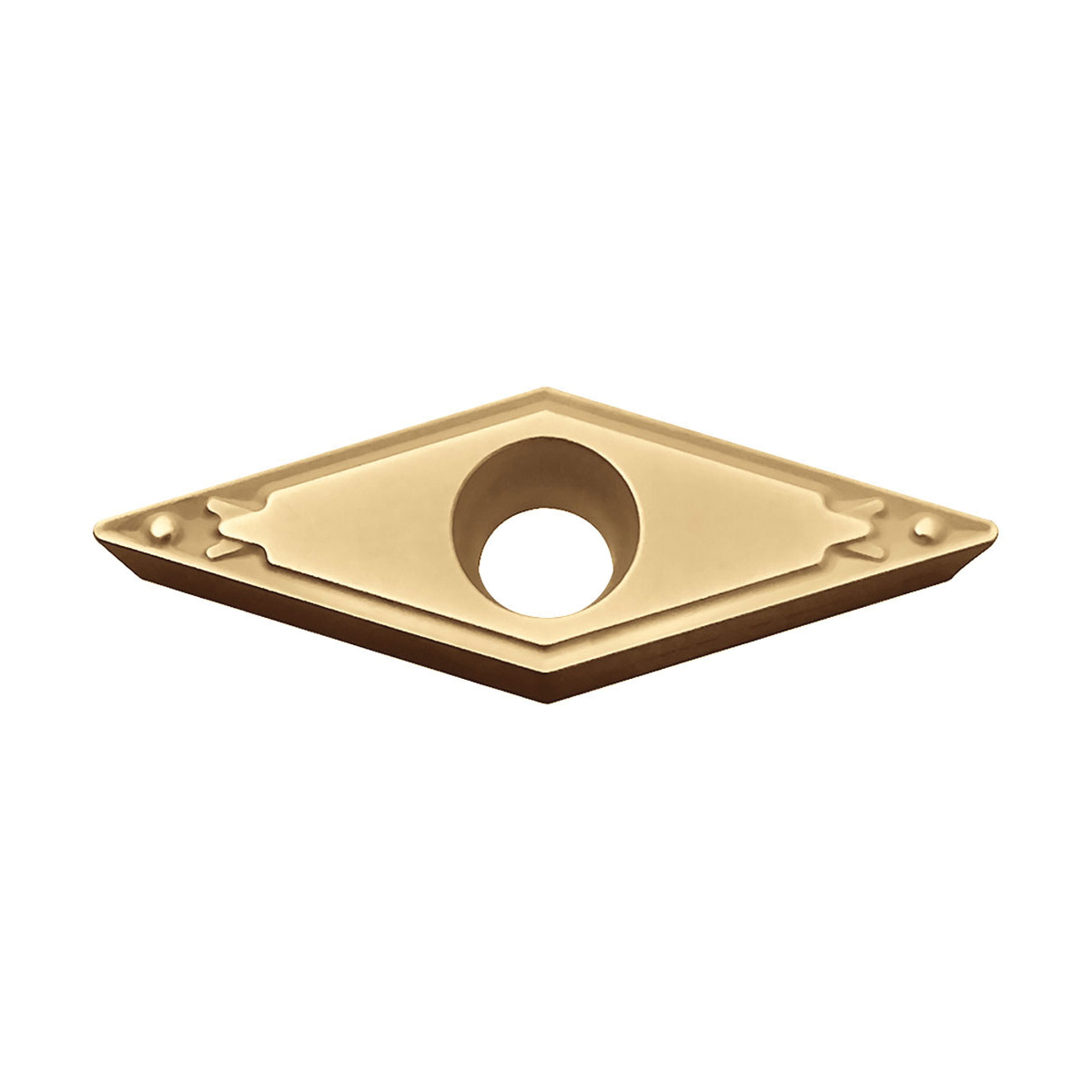

VBMT333HQPV710 TURNING INSERT
VBMT333HQPV710 TURNING INSERT
KYOCTLF07567
TLF07567
17.17
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLF07567
- Applicable Materials: Carbon/Alloy Steel
- Chipbreaker: HQ
- Corner Radius: 0.0472in
- Hand Direction: Neutral
- Hole Diameter: 0.1732in
- Included Angle: 35°
- Inscribed Circle: 3/8in
- Insert Size: #333
- Insert Style: VBMT
- ISO Code: VBMT160412HQ
- Material: Cermet
- Material Grade: P
- Rake: Positive
- Relief Angle: 5°
- Seat Size: 16
- Shape: Diamond
- Surface Treatment: PVD-TiCN/MEGACOAT NANO
- Thickness: 0.1874in
- Type: 2-Cutting Edge
- Manufacturer Grade: PV710
- ANSI Code: VBMT333HQPV710
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling and Undercutting Applications
- MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
- Recommended cermet for long tool life and stable machining for high speed continuous cuts
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
