KYOCERA PRECISION TOOLS

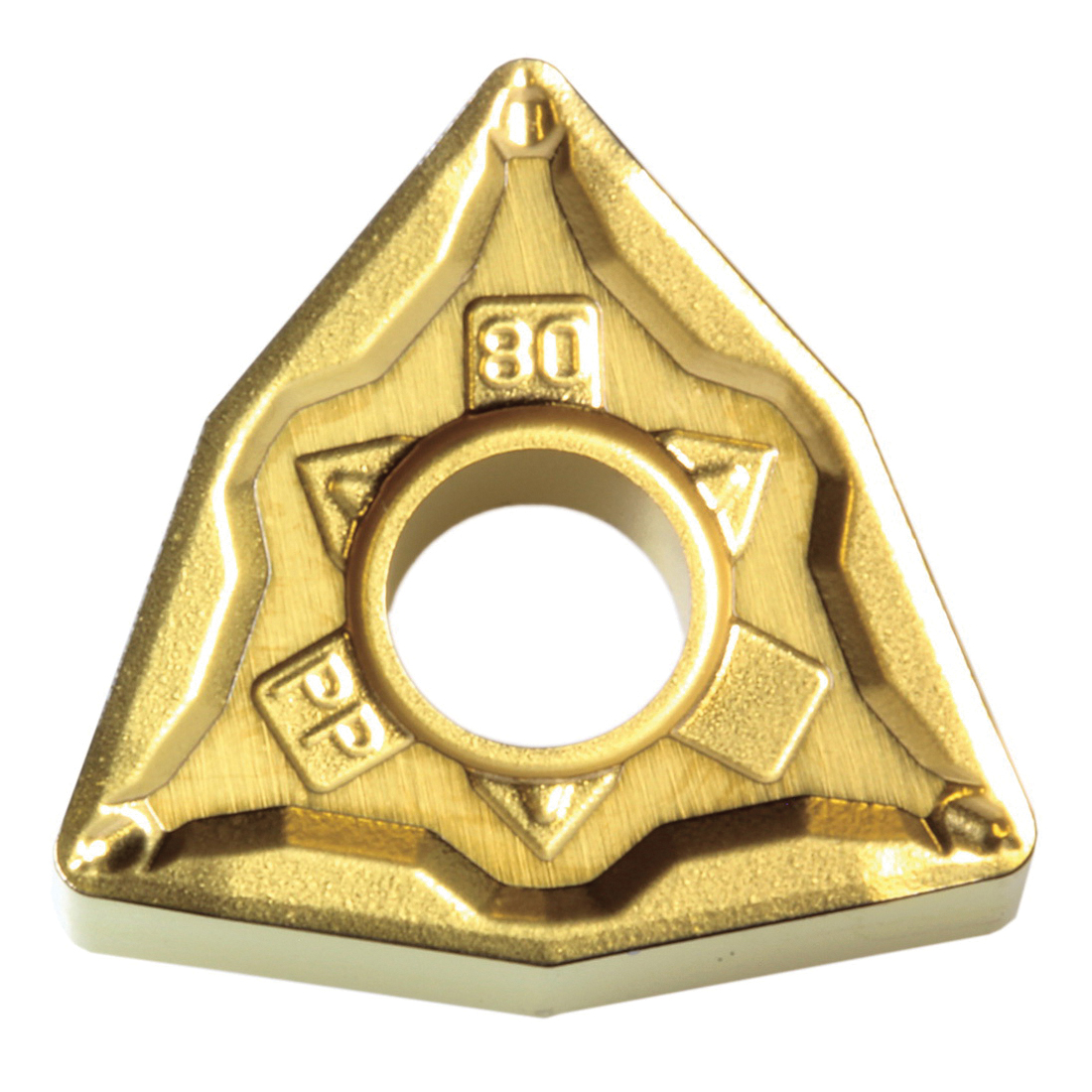

WNMG433PPPV720 TURNING INSERT

WNMG433PPPV720 TURNING INSERT

KYOCTLD08618 TLD08618
9.67 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Stainless Steel and Steel
  • Chipbreaker: PP
  • Corner Radius: 3/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 433
  • Insert Style: WNMG
  • ISO Code: WNMG080412PP PV720
  • Material: Cermet
  • Material Grade: M, P
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: TiCN/MEGACOAT NANO
  • Thickness: 3/16in
  • Type: 2-Sided
  • Manufacturer Grade: PV720
  • ANSI Code: WNMG433PP PV720
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
QTY
  • Application
  • Item Features
Finishing and General Turning
  • PP chipbreaker - 3-step dot structure realizes stable chip control at a wide range of feed rate
  • Less cutting force due to sharp cutting edge and smooth rake face
  • PV720 grade MEGACOAT nano efficient machining with high quality surface finishes and superior wear and adhesion resistance
  • Recommended cermet for stable steel machining and high quality surface finish
