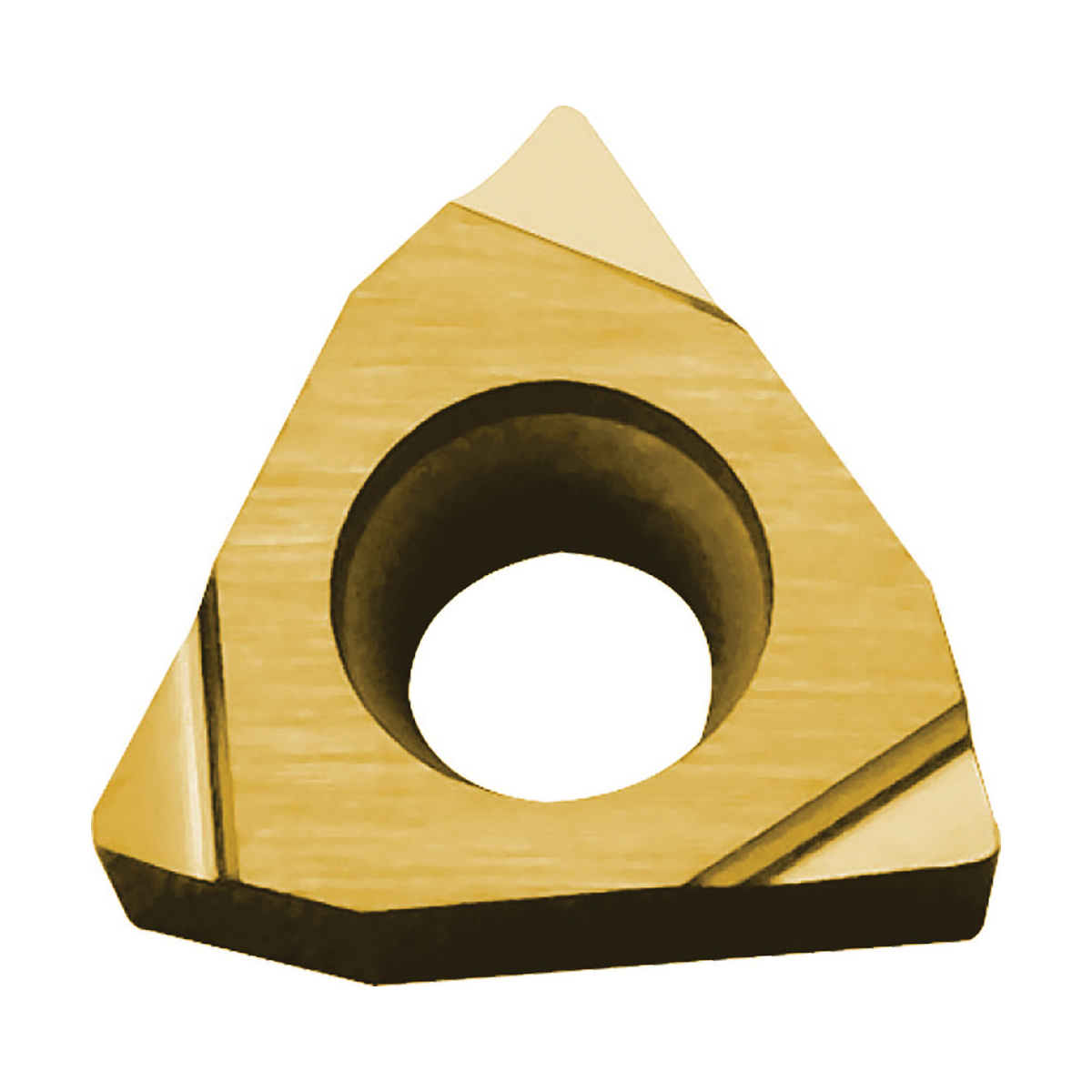

WBET 15151MLF PV720 TURNING INSERT

WBET 15151MLF PV720 TURNING INSERT

KYOCTLD08025 TLD08025
20.18 / EA
http://schema.org/OutOfStock
WBET 15151MLF PV720 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: F
  • Corner Radius: <1/64 in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.0906 in
  • Included Angle: 80 deg
  • Inscribed Circle: 3/16 in
  • Insert Size: #15151
  • Insert Style: WBET
  • ISO Code: WBET080204ML-F
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 5 deg
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: PVD-TiCN/MEGACOAT NANO
  • Thickness: 3/32 in
  • Type: 3-Cutting Edge
  • ANSI Code: WBET15151MLFPV720
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV720
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Sharp edge/minus tolerance corner radius with 3 cutting edges
  • MEGACOAT NANO coating for efficient machining with high quality surface finishes with excellent wear and adhesion resistance
  • Good chip control at finishing to light machining with low cutting force
  • Recommended cermet for stable steel machining and high quality surface finish
ECCN: EAR99
