KYOCERA PRECISION TOOLS

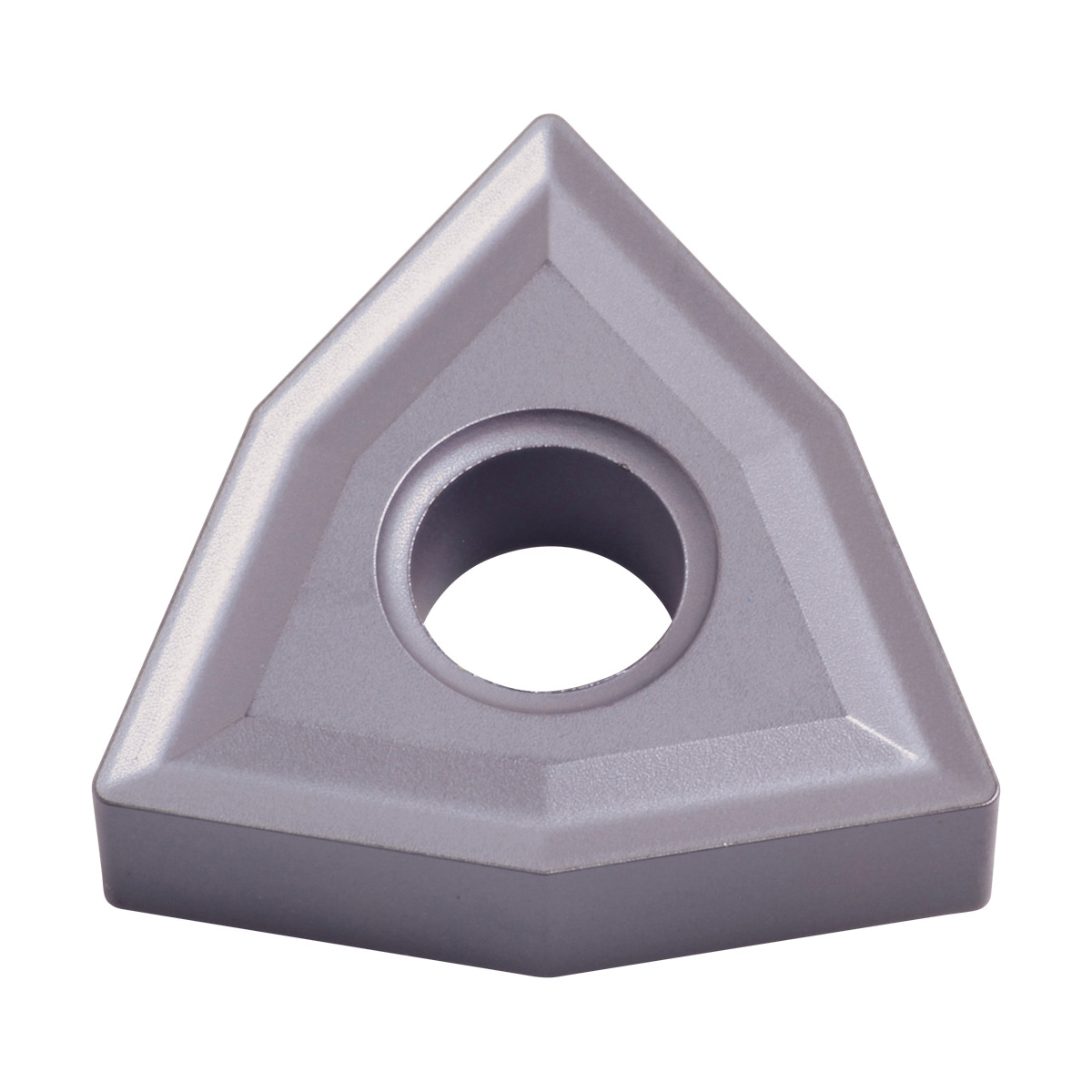

WNMG433PR1535 TURNING INSERT

WNMG433PR1535 TURNING INSERT

KYOCTLC40107 TLC40107
9.89 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Stainless Steel, Heat-Resistant Alloy and Titanium Alloy
  • Corner Radius: 0.0472in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #433
  • Insert Style: WNMG
  • ISO Code: WNMG080412
  • Material: Carbide
  • Material Grade: M, S
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: PVD-MEGACOAT NANO
  • Thickness: 0.1874in
  • Type: 6-Cutting Edge
  • Manufacturer Grade: PR1535
  • ANSI Code: WNMG433PR1535
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Sharp edge/minus tolerance corner radius with 6-cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • PVD for titanium alloy and precipitation hardened stainless steel
  • https://youtu.be/vUo4G4g-5Hc
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
