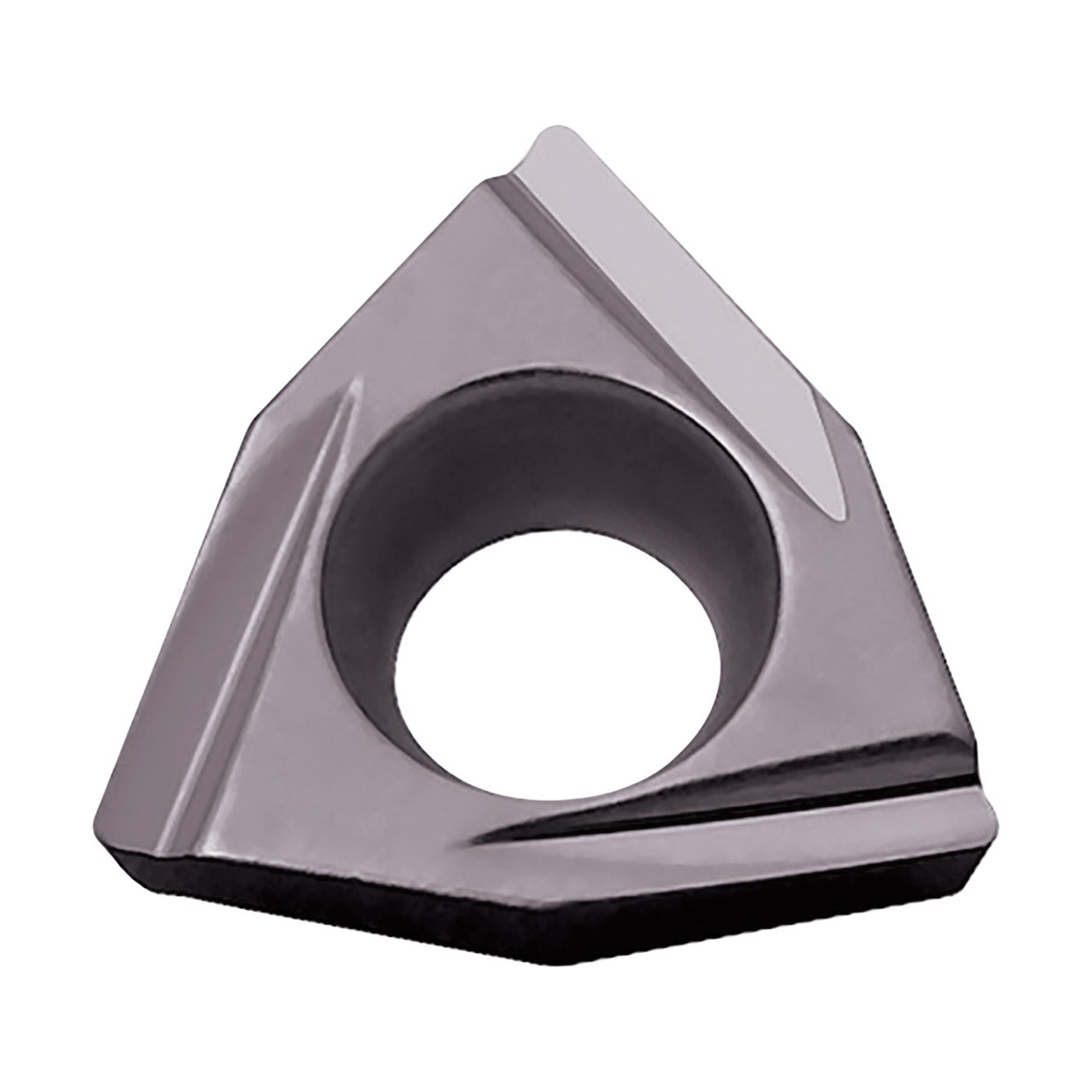

WPGT21505LYPR930 TURNING INSERT

WPGT21505LYPR930 TURNING INSERT

KYOCTKT04350 TKT04350
18.17 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Carbon/Alloy Steel and Stainless Steel
  • Chipbreaker: Y
  • Corner Radius: 0.0079in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.1102in
  • Included Angle: 80°
  • Inscribed Circle: 1/4in
  • Insert Size: #21505
  • Insert Style: WPGT
  • ISO Code: WPGT110202L-Y
  • Material: Carbide
  • Material Grade: P, M
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 11
  • Shape: Trigon
  • Surface Treatment: PVD-TiCN Coated
  • Thickness: 3/32in
  • Type: 3-Cutting Edge
  • Manufacturer Grade: PR930
  • ANSI Code: WPGT21505LYPR930
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
QTY
  • Application
  • Item Features
  • Standards
Boring Applications
  • Hard TiCN base PVD coated super micro-grain carbide
  • Sharp cutting performance and good surface finish
  • Low cutting speed, precise cutting with sharp edge
ECCN: EAR99
