KYOCERA PRECISION TOOLS

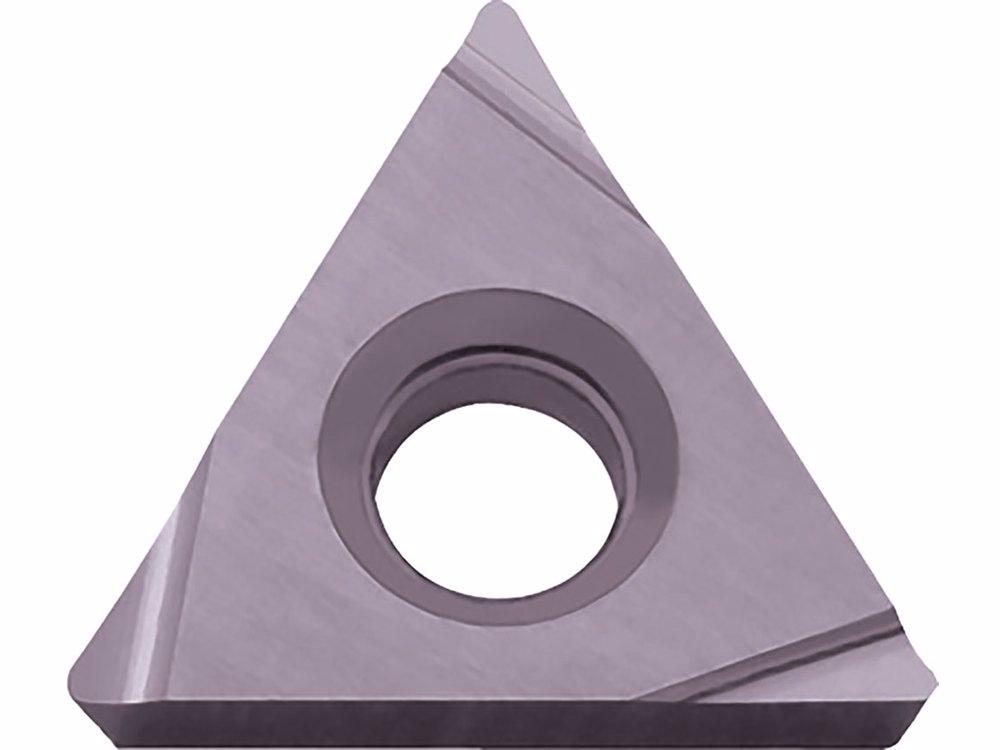

TPGH 3205L PR930 TURNING INSERT

TPGH 3205L PR930 TURNING INSERT

KYOCTKT03750 TKT03750
23.35 / EA
http://schema.org/OutOfStock
TPGH 3205L PR930 TURNING INSERT
  • Corner Radius: 0.2 mm
  • Hand Direction: Left Hand
  • Hole Diameter: 4.5 mm
  • Included Angle: 60 deg
  • Inscribed Circle: 3/8 in
  • Insert Style: TPGH
  • ISO Code: TPGH160302L
  • Material: Carbide
  • Material Grade: PR930
  • Rake: Positive
  • Shape: Triangle
  • Surface Treatment: PVD
  • Thickness: 1/8 in
  • Type: Turning
  • ANSI Code: TPGH3205LPR930
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
For Cut-Off, Slotting
  • 02 Corner Radius
ISO Certified|ANSI Standards
