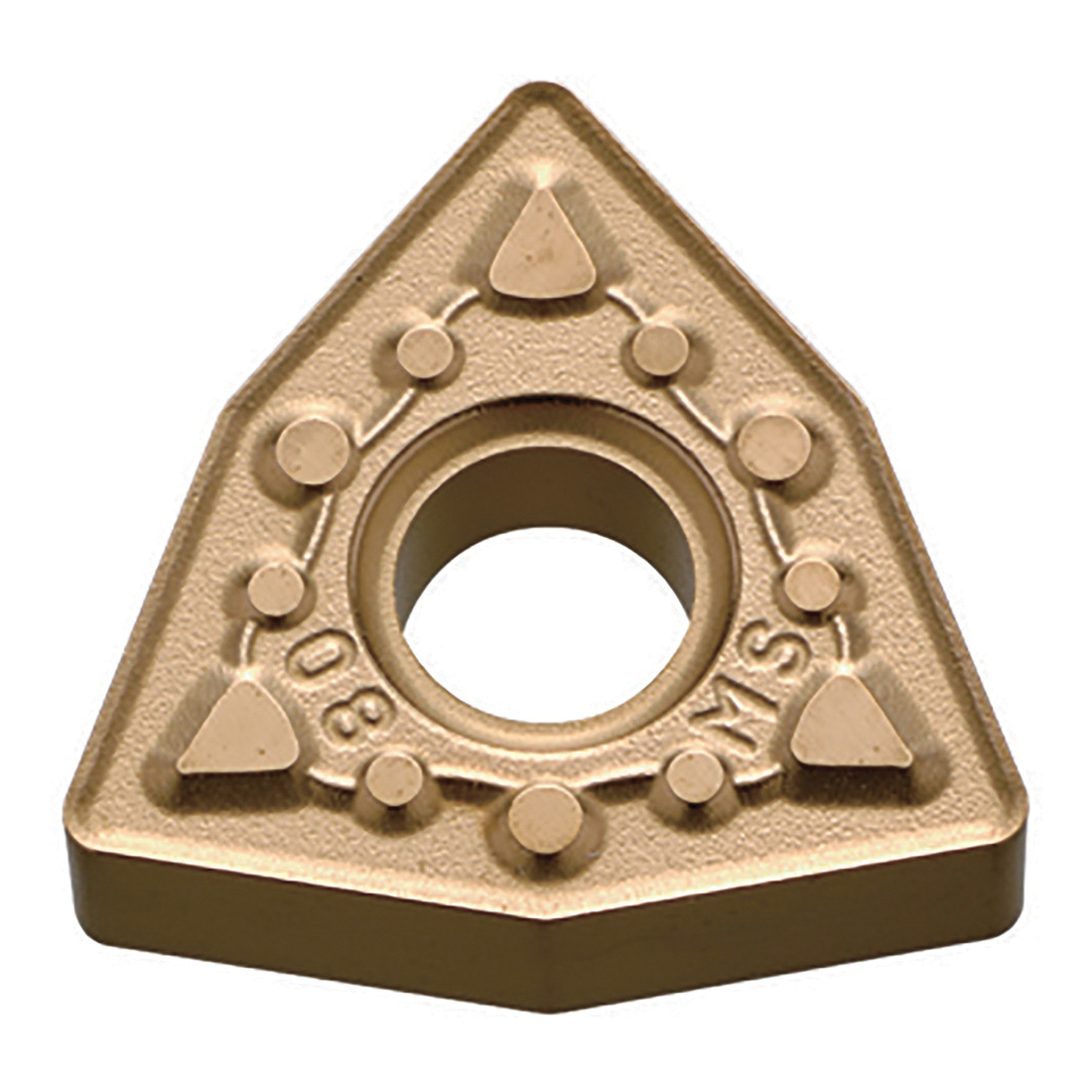

WNMG433MSCA6525 TURNING INSERT
WNMG433MSCA6525 TURNING INSERT
KYOCTJV08633
TJV08633
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJV08633
- Applicable Materials: Stainless Steel
- Chipbreaker: MS
- Corner Radius: 3/64in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 433
- Insert Style: WNMG
- ISO Code: WNMG080412MS CA6525
- Material: Carbide
- Material Grade: M
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 08, 8
- Shape: Trigon
- Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
- Thickness: 3/16in
- Type: 2-Sided
- Manufacturer Grade: CA6525
- ANSI Code: WNMG433MS CA6525
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Medium Roughing and General Turning
- Minimizes notching
- Prevents burrs
- Reduces edge build-up
- Prevents fracture by thin film coating
- Prevents chattering and cutting edge damage at steel machining
- CA6525 grade specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness
- First choice for general cutting of stainless steel, from finishing to roughing and continuous to interruption
- MS chipbreaker - superior cutting edge sharpness and strength achieved by a positive land
- Extra strength of cutting edge inhibits damage from wall shouldering
