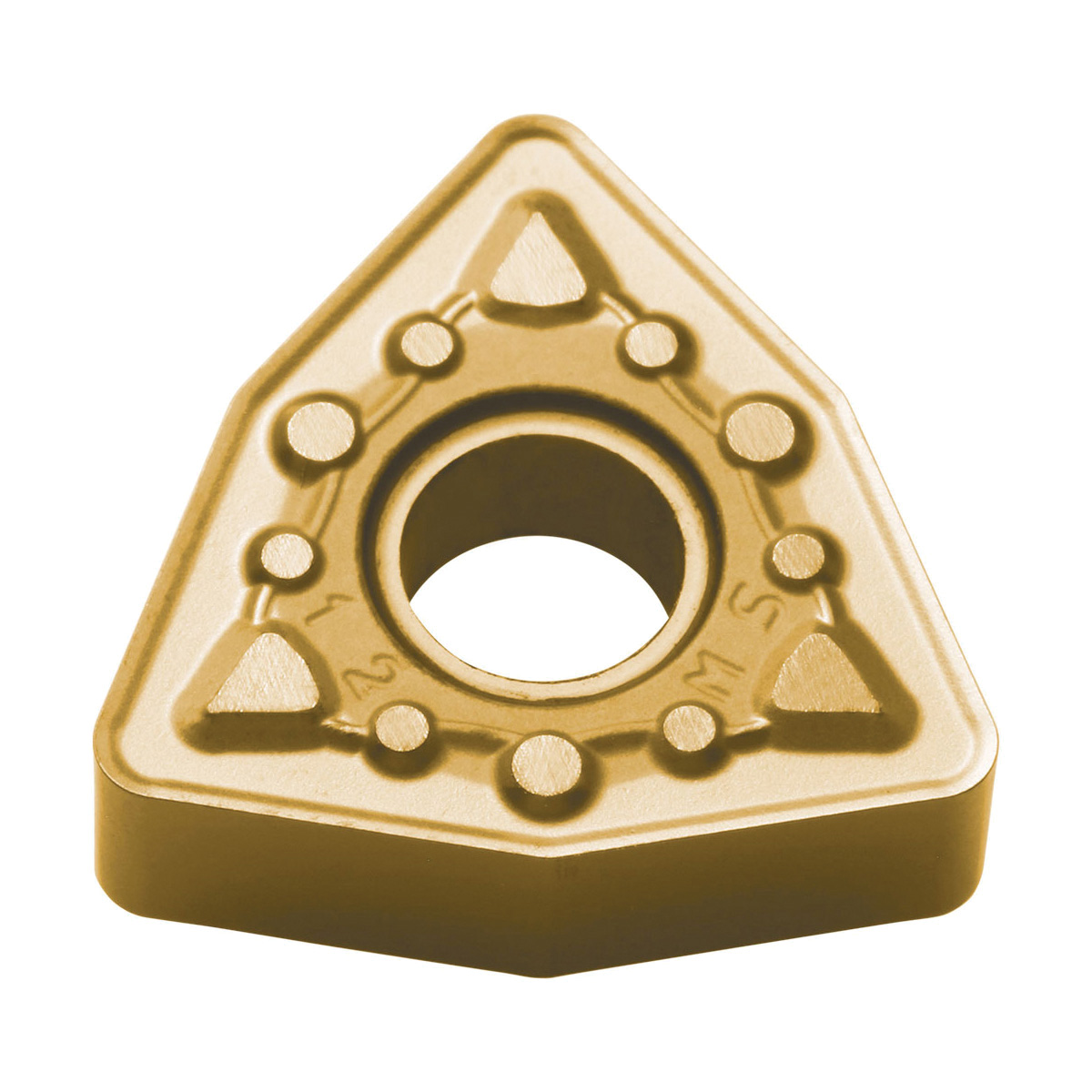

WNMG433MSCA6515 TURNING INSERT

WNMG433MSCA6515 TURNING INSERT

KYOCTJU08633 TJU08633
9.31 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Stainless Steel and Heat-Resistant Alloy
  • Chipbreaker: MS
  • Corner Radius: 0.0472in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #433
  • Insert Style: WNMG
  • ISO Code: WNMG080412MS
  • Material: Carbide
  • Material Grade: M, S
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
  • Thickness: 0.1874in
  • Type: 6-Cutting Edge
  • Manufacturer Grade: CA6515
  • ANSI Code: WNMG433MSCA6515
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Stainless steel/HRSA with 6-cutting edges
  • Specialized carbide substrate for stainless steel cutting, excellent wear resistance
  • Continuous to light interrupted cutting of stainless steel
