KYOCERA PRECISION TOOLS

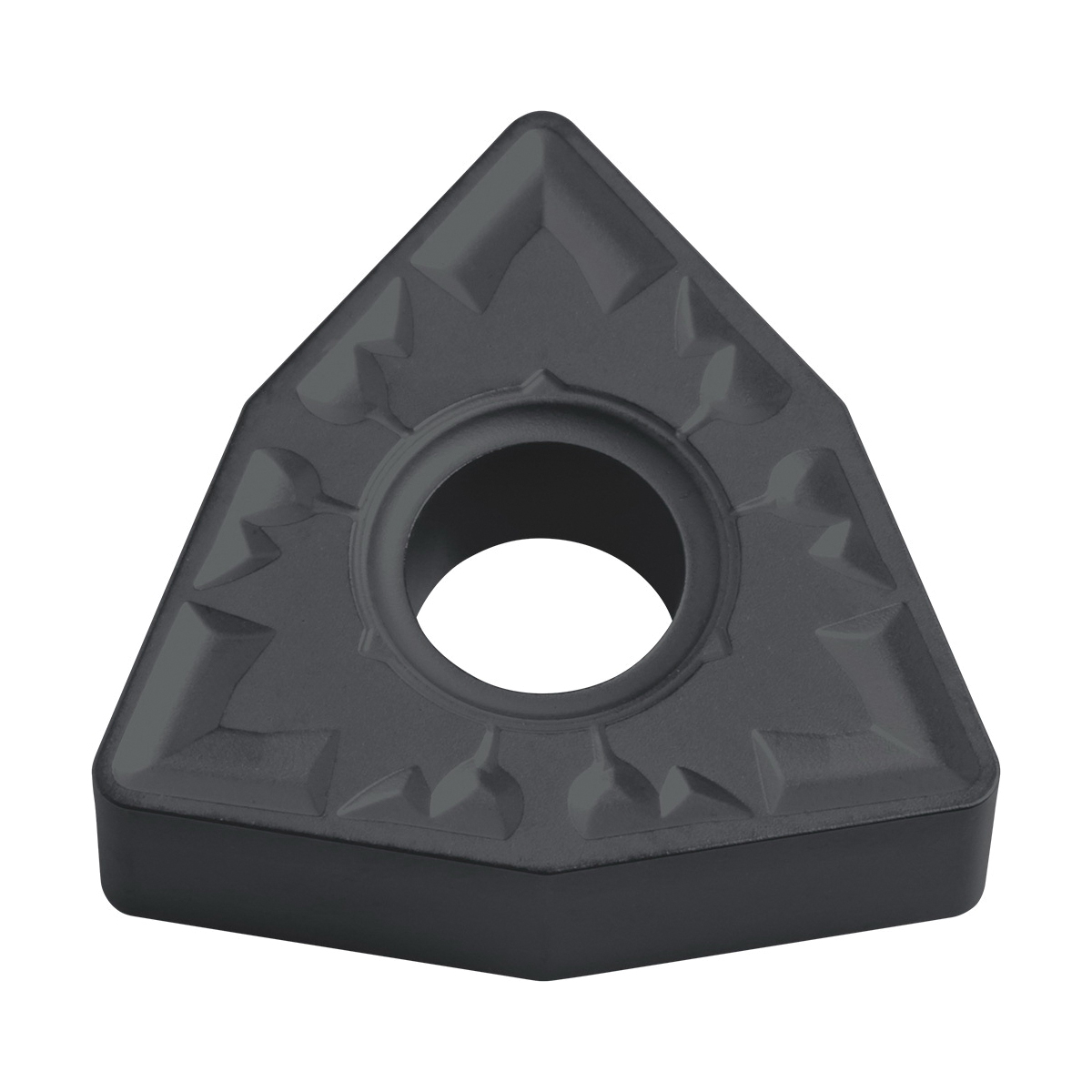

WNMG433ZSCA4515 TURNING INSERT

WNMG433ZSCA4515 TURNING INSERT

KYOCTJH08621 TJH08621
9.31 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Gray Nodular Cast Iron
  • Chipbreaker: ZS
  • Corner Radius: 3/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #433
  • Insert Style: WNMG
  • ISO Code: WNMG080412ZS
  • Material: Carbide
  • Material Grade: K
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 08, 8
  • Shape: Trigon
  • Surface Treatment: VDC-TiCN/Al2O3 Coated
  • Thickness: 3/16in
  • Type: 6-Cutting Edge
  • Manufacturer Grade: CA4515
  • ANSI Code: WNMG433ZSCA4515
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: CA45
QTY
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Cast iron with 6 cutting edges
  • Stable, long tool life due to improved bonded force of coating layers and special treatment on the surface of top coated layer
  • Standard chipbreaker for light interrupted to interrupted machining of cast iron
  • Stability oriented
  • First choice for gray cast iron and nodular cast iron in light to heavy interrupted cutting
ECCN: EAR99
