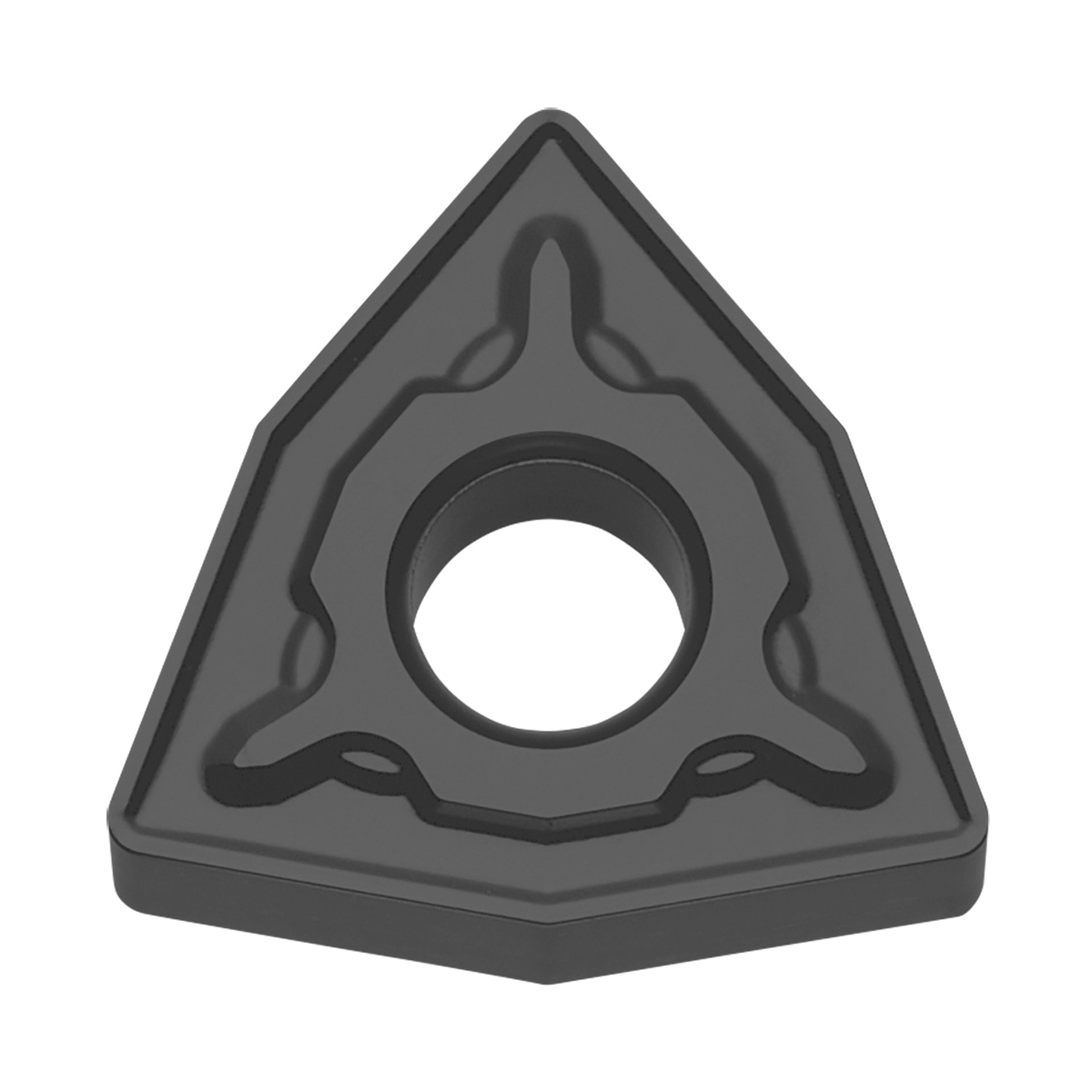

WNMG433PHCA4515 TURNING INSERT
WNMG433PHCA4515 TURNING INSERT
KYOCTJH08546
TJH08546
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJH08546
- Applicable Materials: Gray Nodular Cast Iron
- Chipbreaker: PH
- Corner Radius: 3/64in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #433
- Insert Style: WNMG
- ISO Code: WNMG080412PH
- Material: Carbide
- Material Grade: K
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 8
- Shape: Trigon
- Surface Treatment: VDC-TiCN/Al2O3 Coated
- Thickness: 3/16in
- Type: 6-Cutting Edge
- Manufacturer Grade: CA4515
- ANSI Code: WNMG433PHCA4515
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: CA45
- Application
- Item Features
- Standards
External Turning, Facing, Boring and Internal Facing Applications
- Stable, long tool life due to improved bonded force of coating layers and special treatment on the surface of top coated layer
- For roughing of steel
- Suitable for heavy interrupted machining and for workpieces with scale due to strong cutting edge
- First choice for gray cast iron and nodular cast iron in light to heavy interrupted cutting
ECCN: EAR99
