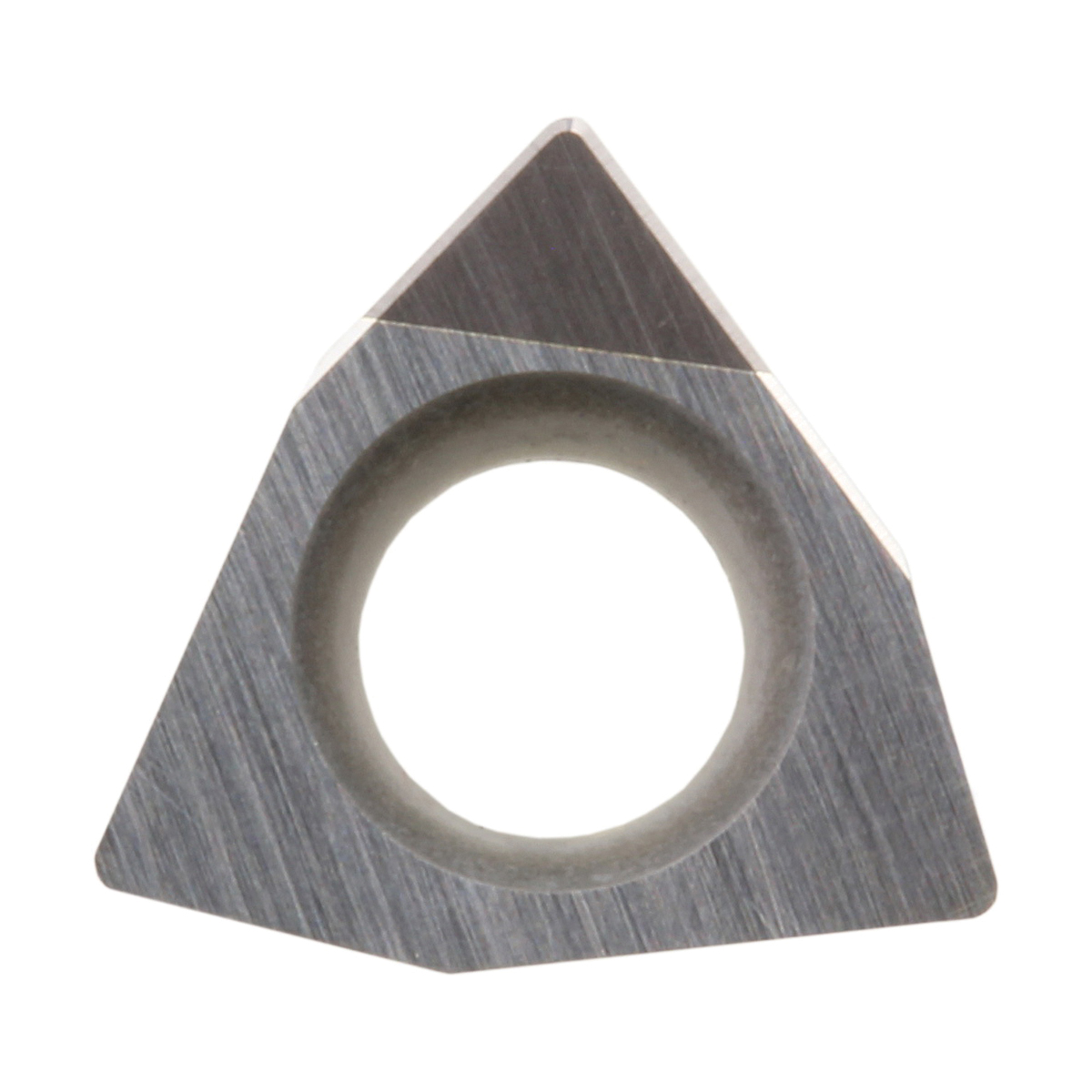

WBGW151505T00315LSEKBN10M TURNING INSERT
WBGW151505T00315LSEKBN10M TURNING INSERT
KYOCTBX07012
TBX07012
43.12
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBX07012
- Applicable Materials: Hardened Material
- Corner Radius: 0.0079in
- Hand Direction: Left Hand
- Hole Diameter: 0.0906in
- Included Angle: 80°
- Inscribed Circle: 3/16in
- Insert Size: #151505
- Insert Style: WBGW
- ISO Code: WBGW080202T00815L-SE
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 5°
- Seat Size: 08, 8
- Shape: Trigon
- Surface Treatment: PVD-MEGACOAT
- Thickness: 3/32in
- Type: 1-Cutting Edge
- ANSI Code: WBGW151505T00315LSEKBN10M
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN10M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Small edge with 1 cutting edges
- Heat-resistant MEGACOAT on CBN with hard binder phase, superior anti-crater wear resistance
- Without chipbreaker
- High speed finishing of hardened die steel
ECCN: EAR99
