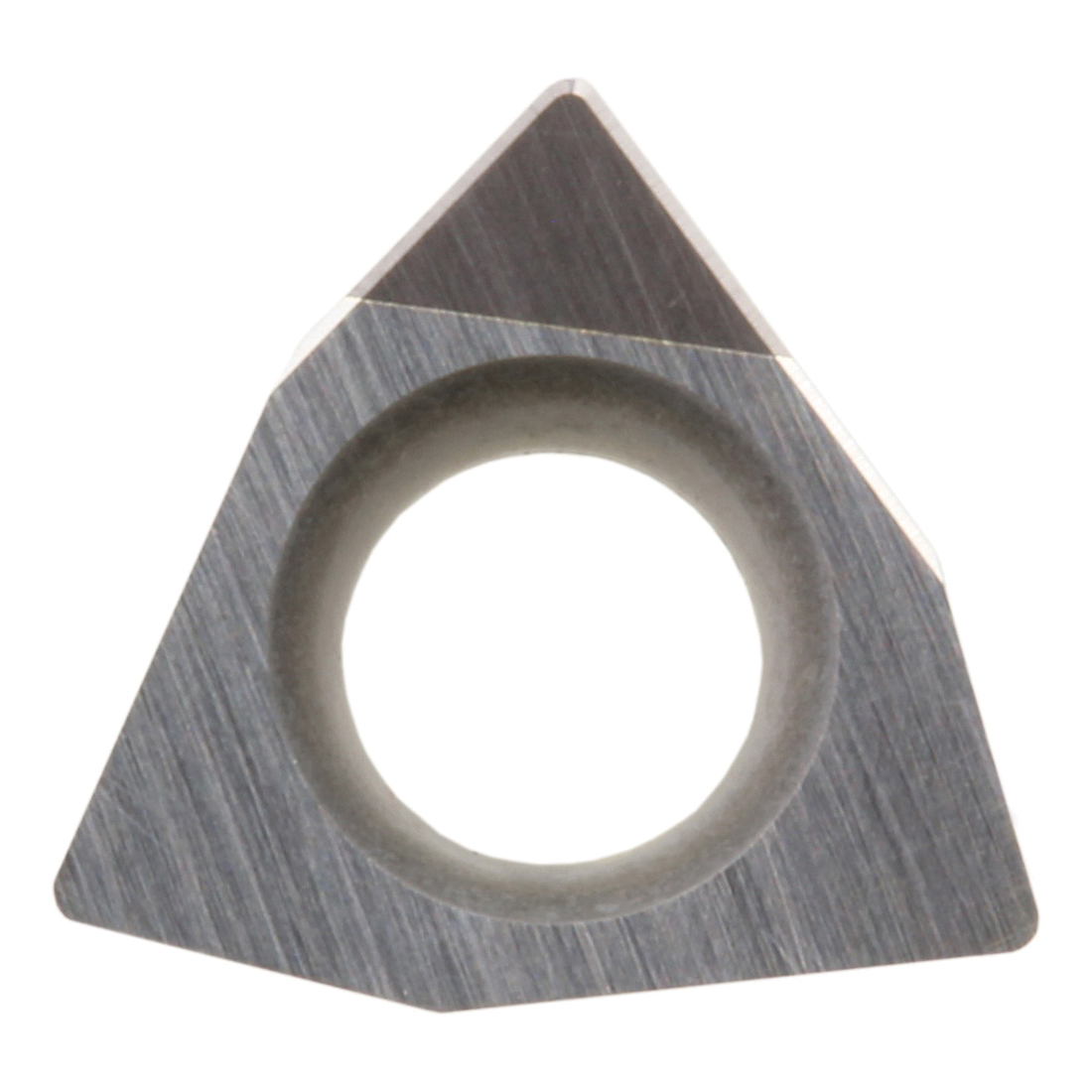

WBGW15151LSEKBN525 TURNING INSERT

WBGW15151LSEKBN525 TURNING INSERT

KYOCTBW07014 TBW07014
43.12 / EA
http://schema.org/OutOfStock
WBGW15151LSEKBN525 TURNING INSERT
  • Applicable Materials: Hardened Materials
  • Chipbreaker: SE
  • Corner Radius: 1/64in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.091in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 15151
  • Insert Style: WBGW
  • ISO Code: WBGW080204L-SE KBN525
  • Material: CBN
  • Material Grade: H
  • Rake: Positive
  • Relief Angle: 5°
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: UNCOATED
  • Thickness: 3/32in
  • ANSI Code: WBGW15151LSE KBN525
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN525
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
General Turning Applications
  • KBN525 grade good balance of toughness and wear resistance, non-coated CBN
  • General grade for hardened steel, high stability at high speed and high feed cutting
