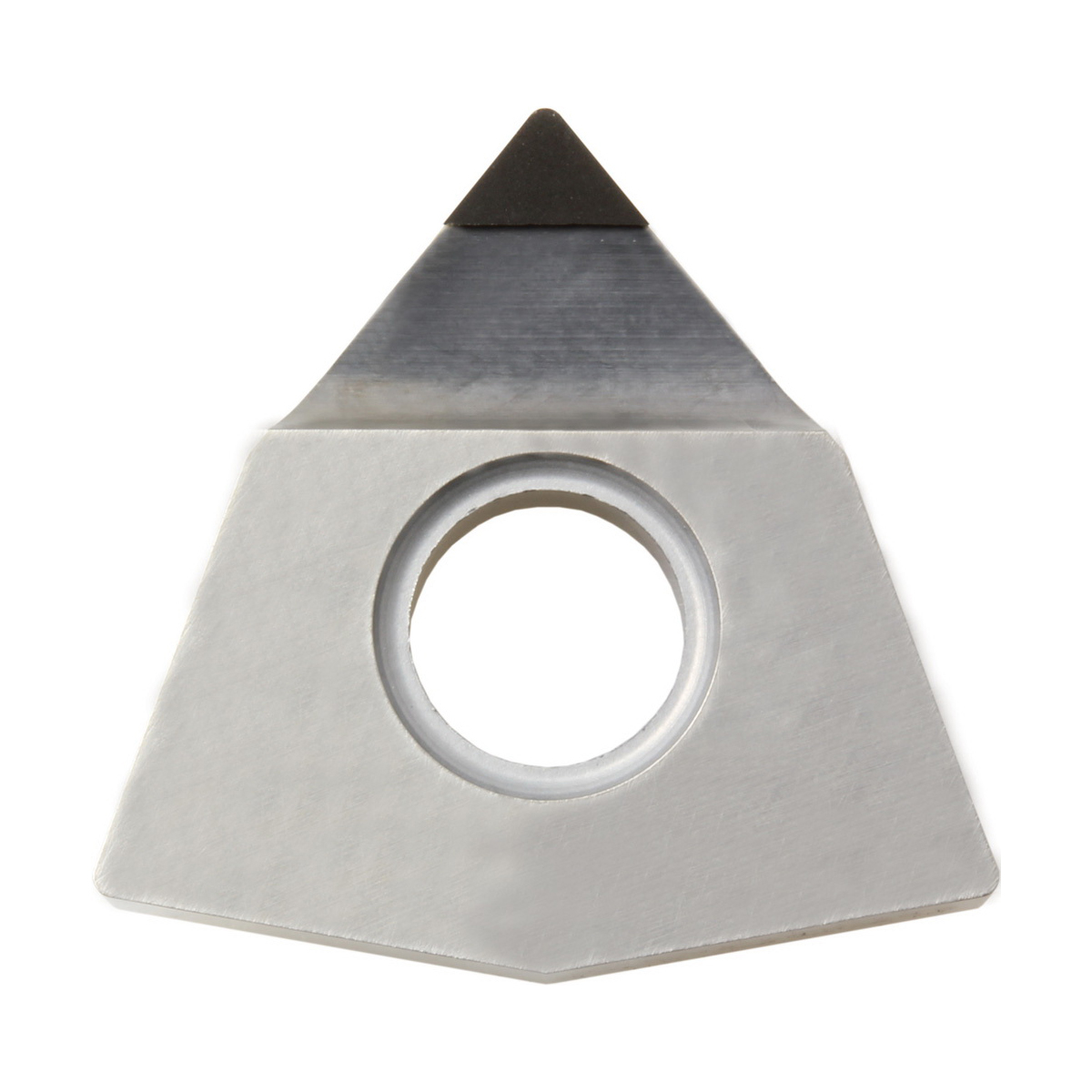

WNMM4305MSEKPD001 TURNING INSERT
WNMM4305MSEKPD001 TURNING INSERT
KYOCTBR07360
TBR07360
45.28
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBR07360
- Applicable Materials: Non-Ferrous Metals and Titanium Alloy
- Corner Radius: 0.0079in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #4305
- Insert Style: WNMM
- ISO Code: WNMM080402MSE
- Material: PCD
- Material Grade: N, S
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 8
- Shape: Trigon
- Thickness: 3/16in
- Type: 1-Cutting Edge
- Manufacturer Grade: KPD001
- ANSI Code: WNMM4305MSEKPD001
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Boring and Internal Facing Applications
- Small edge with 1 cutting edges
- Super micro-grain pcd features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance and long, stable tool life
- High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
ECCN: EAR99
